Vista Bode – 40' Expandable Container Office | Expandable Portable Workspace | Off-Grid & Remote Office Solution
Couldn't load pickup availability
Bulk Discounts Available: Save when ordering 4+ units
Redefine Your Workspace

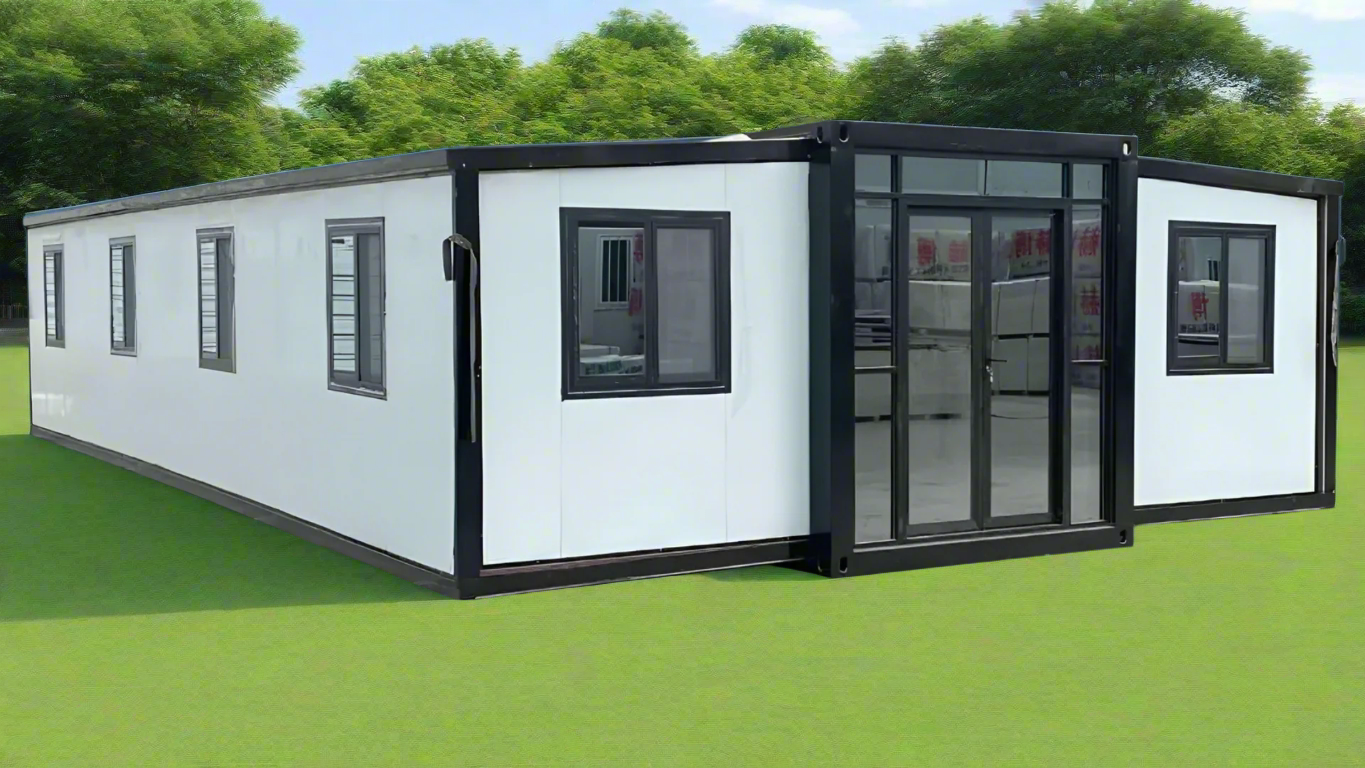

The CHOMEX 40' x 19' Rapid Deploy Office delivers 775+ SF of professional workspace that sets up in under an hour. Perfect for remote sites, off-grid operations, or temporary expansions, it combines speed, comfort, and durability in one modular package.
This portable unit includes a built-in bathroom, pre-installed electrical system, and weather-resistant construction designed to perform in extreme climates. Whether you need an executive office, coworking hub, or emergency coordination center, the Rapid Deploy Office is your plug-and-play productivity solution.
🏠 Key Features
- Rapid Deployment: Fully functional within 1 hour of delivery
- Spacious Interior: Over 775 SF of open-plan workspace with natural lighting
- Built-In Bathroom: Includes shower, vanity, and toilet
- Premium Build: Double-pane windows, SPC flooring, and up to 60db soundproofing
- All-Weather Rated: Withstands Category 5 hurricanes; snow load 1.0 kN/m²
- Utility-Ready: Pre-installed electrical, lighting, and plumbing
- Long Service Life: Anti-corrosion treated frame, 50+ year lifespan
- Customizable: Configure for private offices, conference rooms, or open work areas
📐 Dimensions
- Expanded Size: 38' 9" L × 20' 5" W × 8' 2" H
- Internal Size: 37' 10" L × 19' 11" W × 7' 3" H
- Surface Area: ~865 SF
- Ceiling Height: 8' (min) – 8'7" (max)
🔧 Construction Specifications
- Wallboard: Type 950: 65 mm double-sided 0.3 mm EPS color steel composite panel
- Frame: Electrostatic sprayed protective coating + anti-corrosion coating
- Folding Hinge: 130 mm galvanized embedded hinge
- Floor: 18 mm bamboo glue board + 4 mm SPC stone plastic flooring
- Main Exterior Roof: Type 950: 50 mm EPS steel composite + 0.45 mm corrugated veneer
- Ceiling Panels: Type 950: 50 mm EPS steel composite
- Wing Roof Panels: Type 950: 65 mm EPS steel composite + 0.45 mm corrugated veneer
- Windows & Doors: Aluminum alloy double-glass sliding windows, steel fire door (optional broken-bridge aluminum)
- Electrical: Standard wiring; customizable to project needs

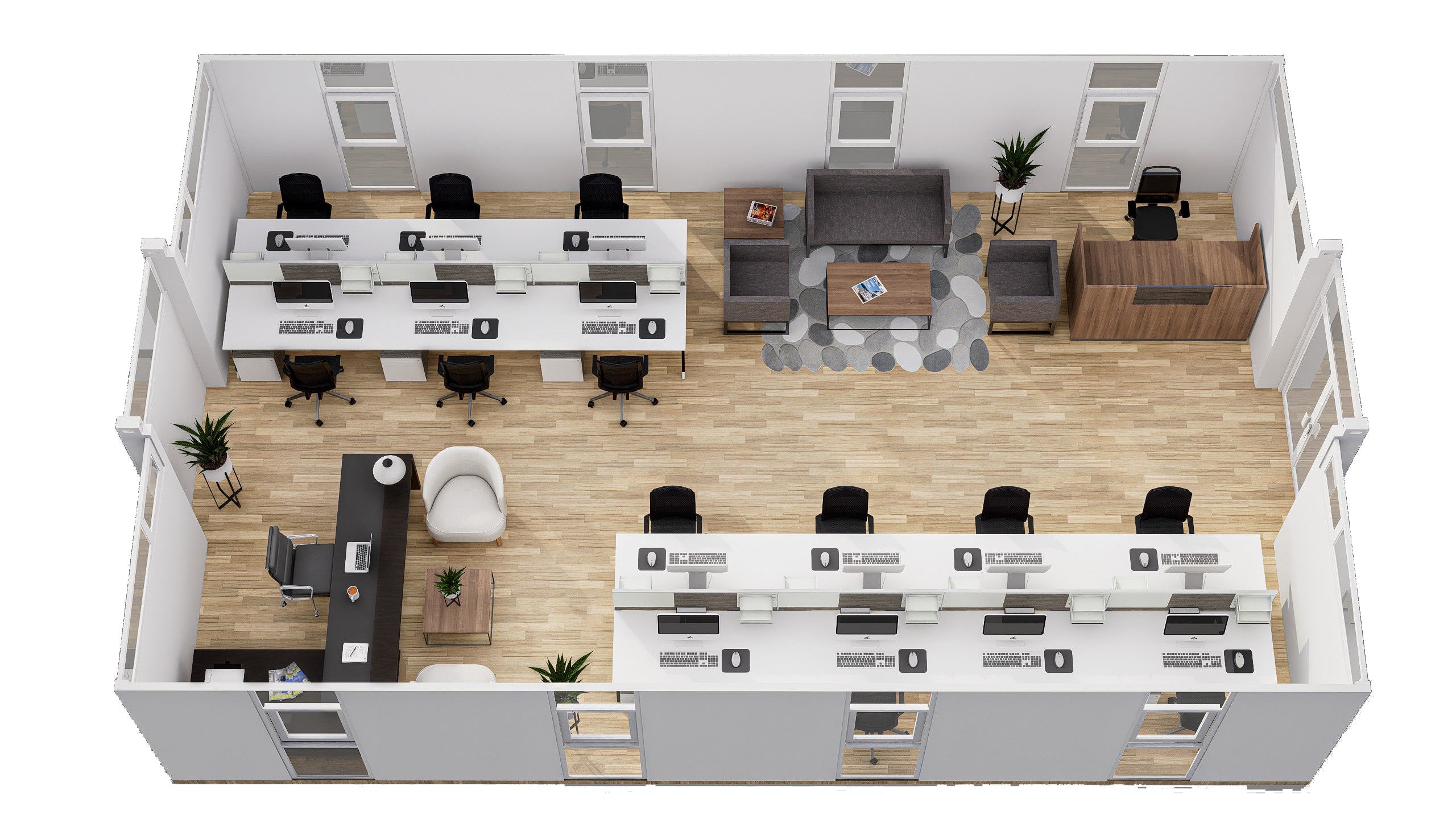

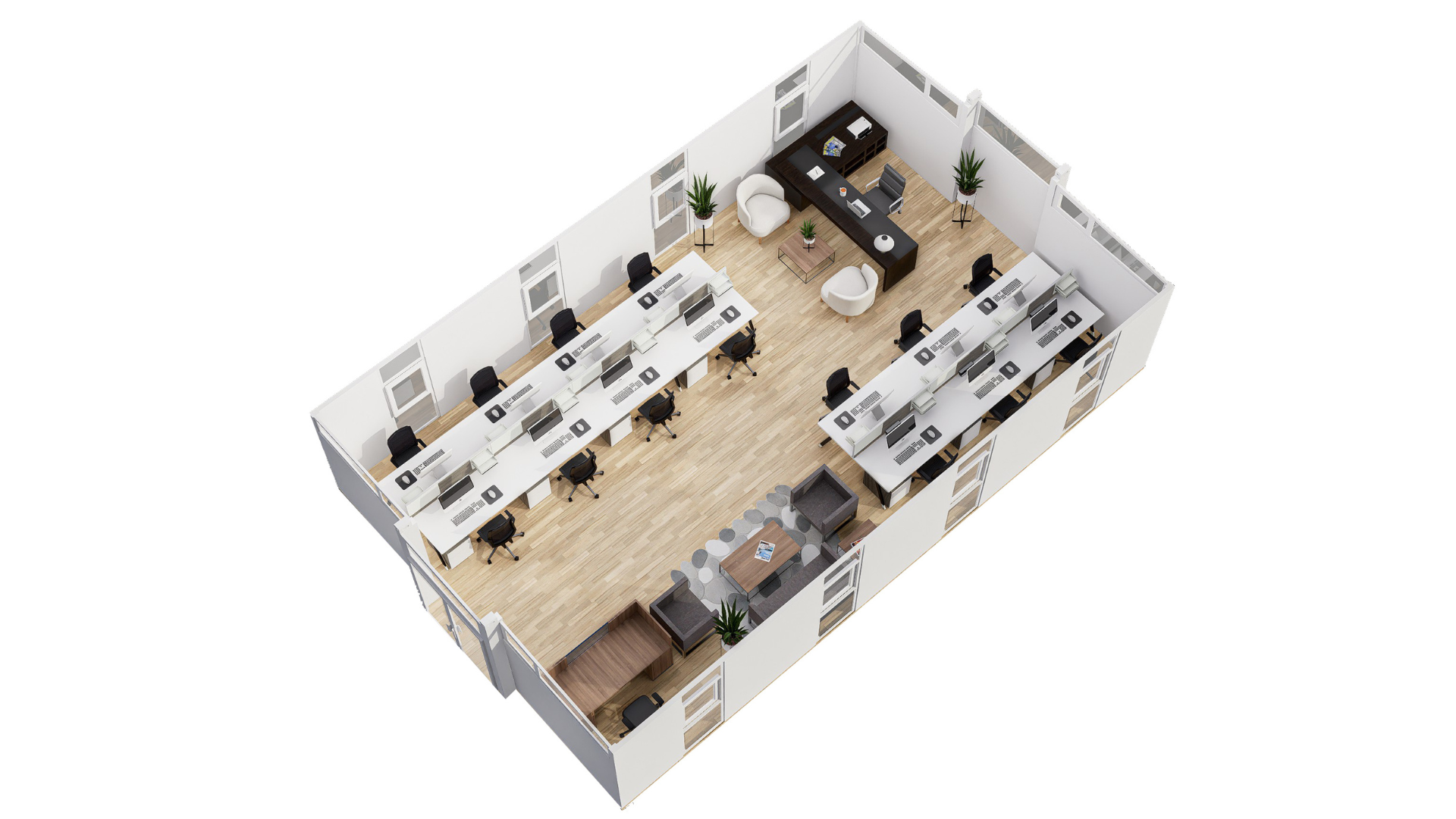

🛋 Interior Layout Options
Typical residential layouts: adaptable to office configurations.
For offices: convert to meeting rooms, workstations, break rooms, or open-plan setups.
🚪 Door & Window Details
Doors:
- Security: Zinc alloy steel plate + aluminum frame + smart fingerprint lock
- Entrance: Broken-bridge aluminum + double-layer tempered glass
- Interior: Titanium-magnesium alloy frame + sandwich wood board
- Bathroom: Titanium-magnesium alloy + tempered glass

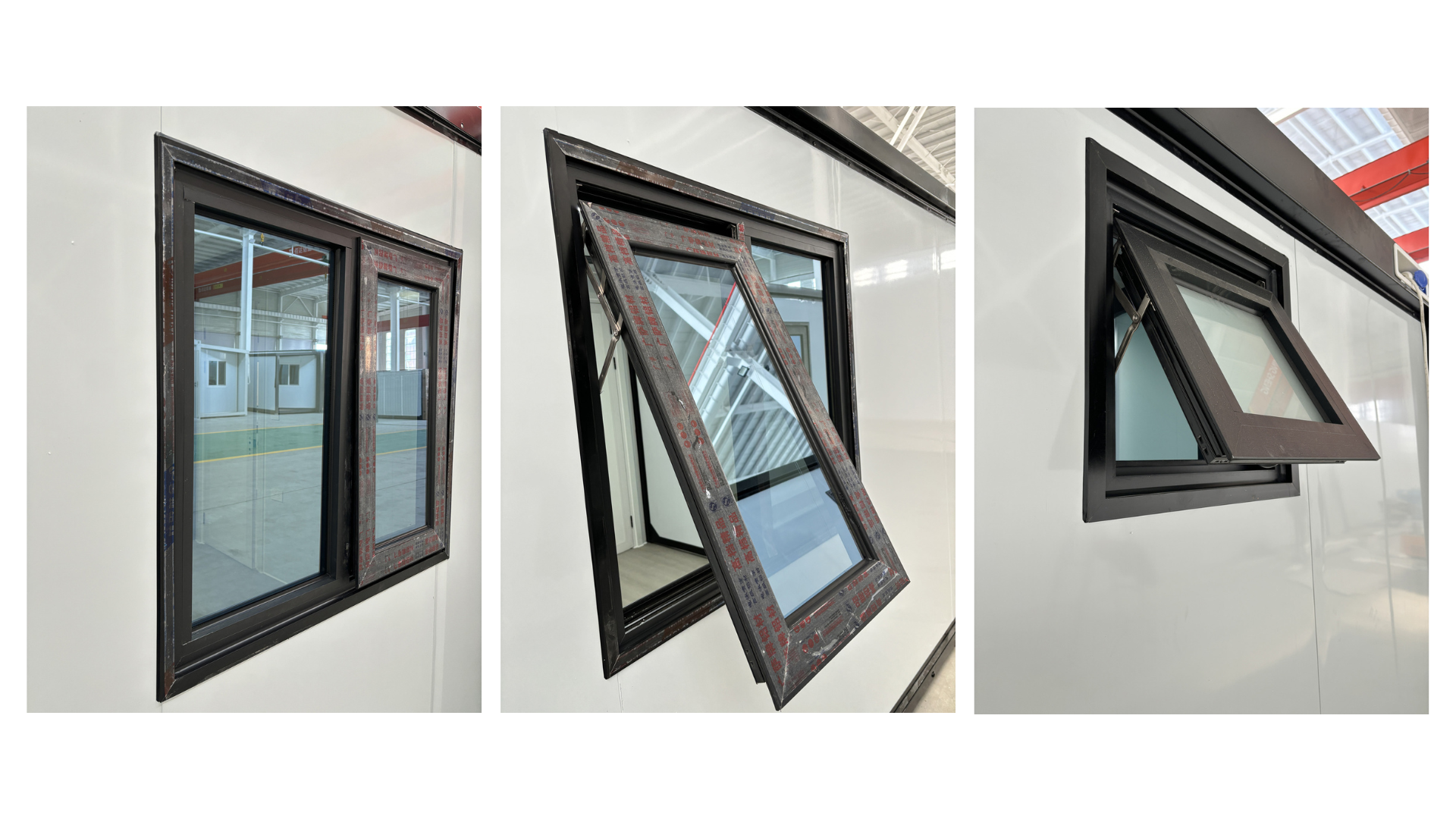

Windows:
Broken-bridge aluminum or aluminum alloy + double-layer tempered glass
Optional plastic steel frame
🚿 Bathroom Details
Dry/Wet Separation with Changhong glass doors
Shower (copper core), wash basin, intelligent mirror cabinet, toilet
UV wall panels, SPC flooring, polyurethane insulated base, steel bottom protection
Fully plumbed for water and sewer connections
🧱 Exterior Wall Panels
Lightweight yet high-strength
Cold & heat resistant, A2 fire protection
Long-lasting finish with color customization available
100% recyclable
🎨 Interior Wall Panel Options
- Beige
- Fine Fabric
- Sub-Gray Country
- Fine Pearl
- Boutique Hot Stamping
- Wenge Wood A009 (Double Inclined Groove)
- A003 Dashan Wood
🪵 Floor Color Selections
- 4.0 mm SPC Stone Plastic Floor: HY8911, HY8918, HY8920, HY8915, HY8921
- 8.0 mm SPC Stone Plastic Floor: F8581, F8582, F8583, F8585, F8586
🔄 Use Cases
- Off-grid or remote worksite offices
- Executive or corporate satellite offices
- Event command or media centers
- NGO or disaster response headquarters
- Prefab coworking spaces
🛠 What’s Included
- Expandable 40' modular office unit
- Installed doors & windows
- Pre-framed interior with built-in bathroom
- Installed wiring, lighting, and plumbing points
- Technical docs: Floor Plan, 3D View, Roof/Elevation Plans
🛠 Customization Available
Looking for a studio version or different finishings?
📩 Contact Us for custom configurations or volume orders.
Free nationwide delivery across the continental U.S. via flatbed or tilt-bed trucks.Crane service available (additional cost).Lead Time: 6-8 weeks
⚠️ Check local zoning and permitting regulations before purchase.
- 3-Year Structural Warranty
- 3-Year Electrical & Plumbing Parts Warranty
- Learn More About Warranty
- Select layout & quantity
- Choose finishes (optional)
- Confirm details within 72 hrs
- Production & delivery in 6-8 weeks
- Receive, unfold, connect, and move in
For more information, visit The CHOMEX Process.
