Grand Luxe – 40'+ Expandable Container Home | 3 Bedrooms | Full Bath, Kitchen, Living Room | High-Ceiling Modular Home (865 SF)

Bulk Discounts Available: Save when ordering 4+ units

A Full Home in a Foldable Frame

The CHOMEX 40' Expandable Container Home offers 865 SF of comfortable, high-ceiling living space with 3 private bedrooms, a spacious living room, a full kitchen, and a modern bathroom — all in a foldable, flat-packed design that sets up in under an hour.
Perfect for families, vacation rentals, or permanent residences, this high-ceiling model floods the interior with natural light thanks to its full-glass front. Built with hurricane-rated, fire-retardant materials and premium insulation, it’s engineered for long-term comfort and durability in any climate.

🏠 Key Features

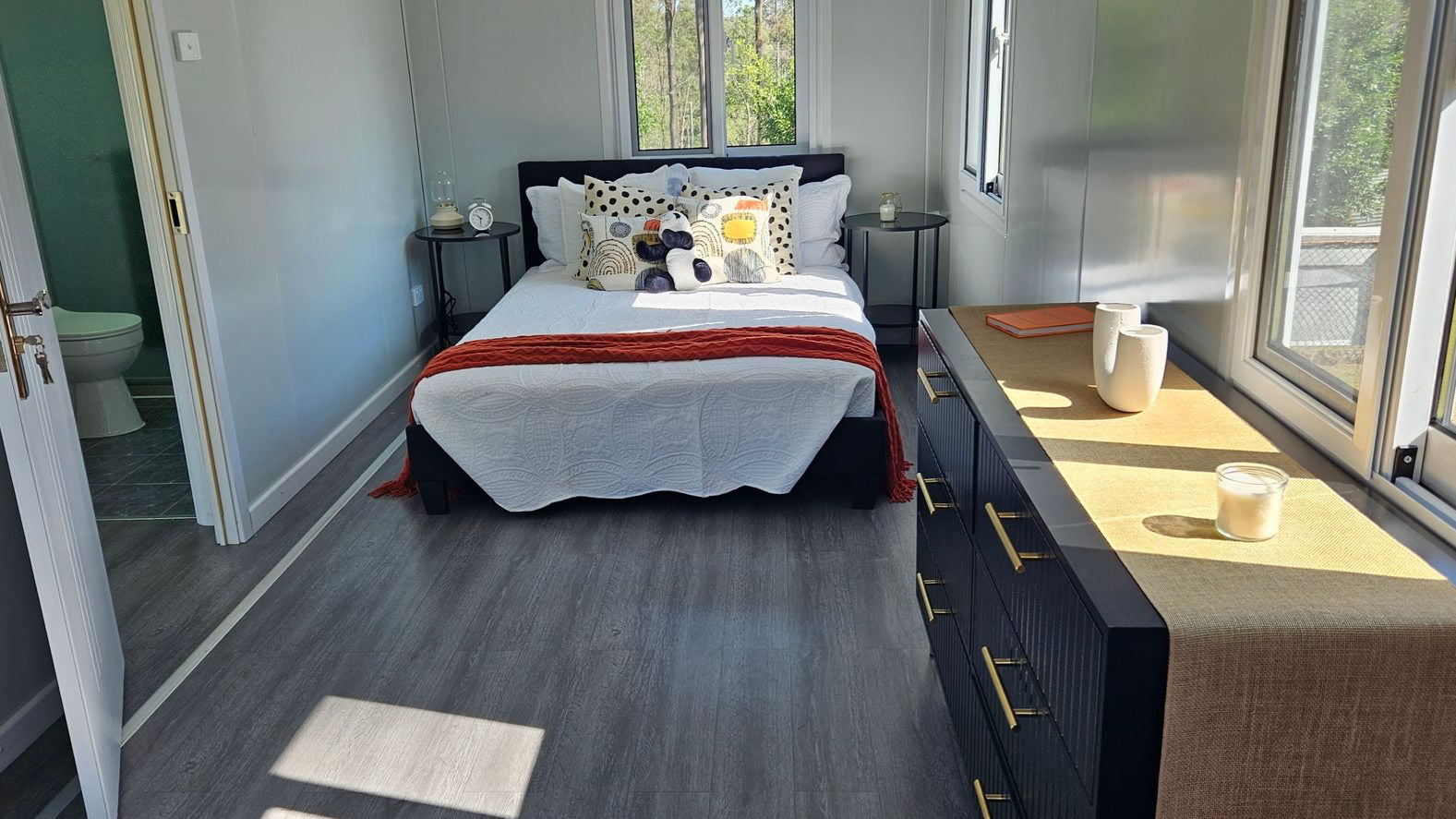

• 3 Private Bedrooms: Ideal for families or group living
• Spacious Living Room: ~354 SF for lounging or entertaining
• Full Kitchen: 77 SF prep and appliance space
• Private Bathroom: 33 SF with vanity, shower, and toilet
• High-Ceiling Design: Up to 8'7" for a bright, open feel
• Full Glass Front: Maximizes daylight and views
• Rapid Setup: Unfolds and installs in less than 1 hour
• Premium Build: Fire-retardant, soundproof up to 60db, hurricane-rated
• Utility-Ready: Pre-framed for electrical, plumbing, and HVAC

📐 Dimensions

• Expanded Size: 38' 9" L × 20' 5" W × 8' 2" H
• Internal Size: 37' 10" L × 19' 11" W × 7' 3" H
• Folded Size: 38' 9" L × 7' 3" W × 8' 2" H
• Surface Area: ~865 SF
• Ceiling Height: 8' (min) – 9'6" (max) ( Varies by Model)
• Room Sizes:
• Bedrooms: ~9' × 11' each
• Living Room: 12'11" × 27'4.5" (~354 SF)
• Kitchen: 77 SF
• Bathroom: 33 SF

🔧 Construction Specifications

• Wallboard: Type 950: 65 mm double-sided 0.3 mm EPS color steel composite panel
• Frame: Electrostatic sprayed protective coating + anti-corrosion layer
• Folding Hinge: 130 mm galvanized embedded hinge
• Floor: 18 mm bamboo glue board + 4 mm SPC stone plastic flooring
• Main Exterior Roof: Type 950: 50 mm EPS steel composite + 0.45 mm corrugated veneer
• Ceiling Panels: Type 950: 50 mm EPS steel composite
• Wing Roof Panels: Type 950: 65 mm EPS steel composite + 0.45 mm corrugated veneer
• Windows & Doors: Aluminum alloy double-glass sliding windows, steel fire door (optional broken-bridge aluminum)
• Electrical: Standard wiring; customizable to requirements

🛋 Interior Layout Options

• Option A: Two bedrooms, a study, a living room, a kitchen, and a bathroom
• Option B: Three bedrooms, a living room, a kitchen, and a bathroom

🚪 Door & Window Details

Doors:

• Security: Zinc alloy steel plate + aluminum frame + smart fingerprint lock
• Entrance: Broken-bridge aluminum + double-layer tempered glass
• Interior: Titanium-magnesium alloy frame + sandwich wood board
• Bathroom: Titanium-magnesium alloy + tempered glass

Windows:
Broken-bridge aluminum or aluminum alloy + double-layer tempered glass
Optional plastic steel frame

🚿 Bathroom Details

Dry/Wet Separation with Changhong glass doors
Shower (copper core), wash basin, intelligent mirror cabinet, toilet
UV wall panels, SPC flooring, polyurethane insulated base, steel bottom protection
Fully plumbed for water and sewer connections

🧱 Exterior Wall Panels

Lightweight yet high-strength
Cold & heat resistant, A2 fire protection
Long-lasting finish with color customization available
100% recyclable

🎨 Interior Wall Panel Options

• Beige
• Fine Fabric
• Sub-Gray Country
• Fine Pearl
• Boutique Hot Stamping
• Wenge Wood A009 (Double Inclined Groove)
• A003 Dashan Wood

🪵 Floor Color Selections

• 4.0 mm SPC Stone Plastic Floor: HY8911, HY8918, HY8920, HY8915, HY892
• 8.0 mm SPC Stone Plastic Floor: F8581, F8582, F8583, F8585, F8586

🔄 Use Cases

• Full-time family home
• Guest house or vacation rental
• Airbnb or short-term rental property
• Remote staff housing
• NGO or relief housing

🛠 What’s Included

• Expandable 40' modular home structure
• Installed windows & doors
• Full interior layout (3 bedrooms, kitchen, bath, living room)

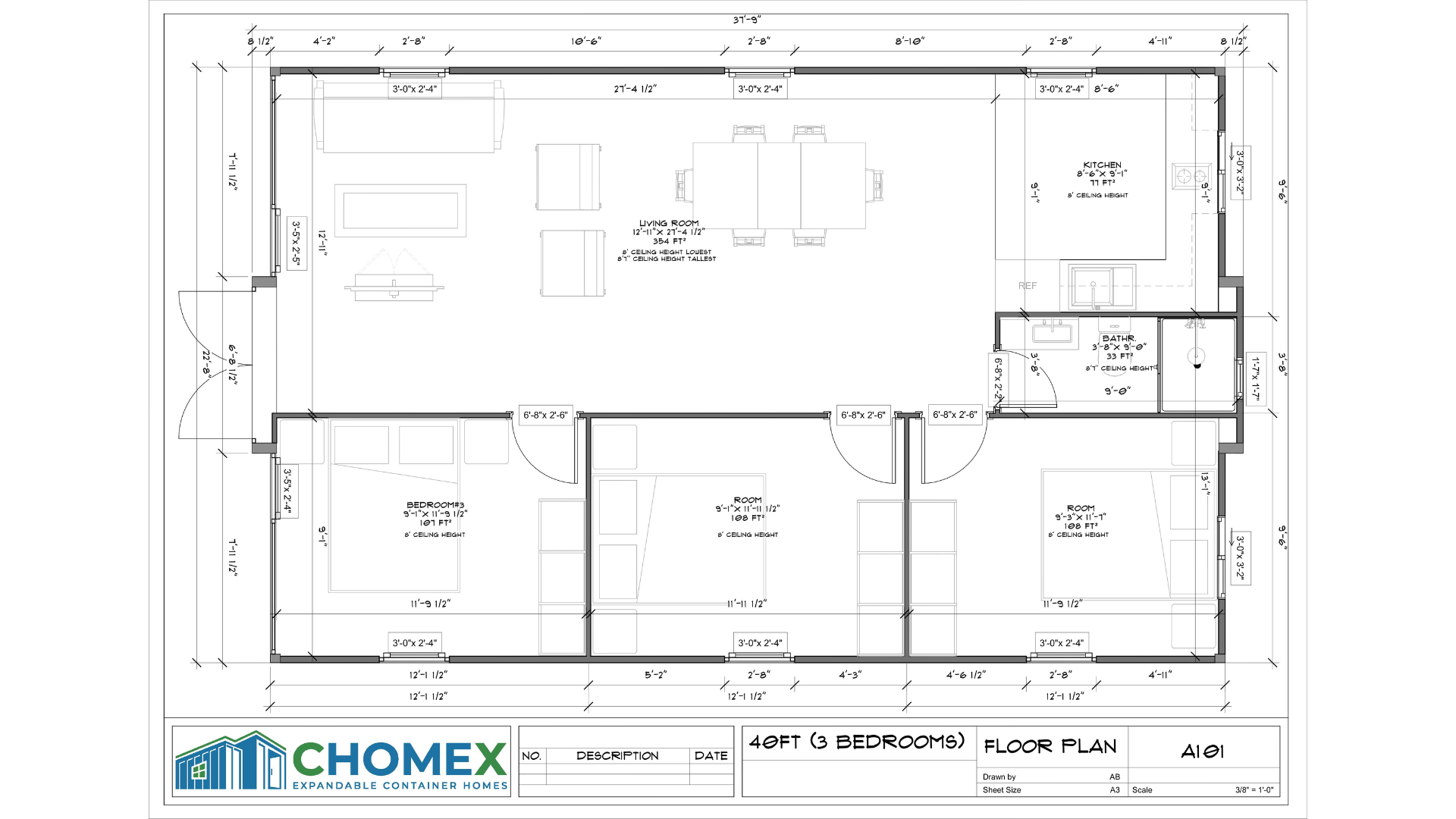

• Technical docs: Floor Plan, 3D View, Roof/Elevation Plans

🛠 Customization Available

Looking for a studio version or different finishings?
📩 Contact Us for custom configurations or volume orders.

Free nationwide delivery across the continental U.S. via flatbed or tilt-bed trucks.Crane service available (additional cost).Lead Time: 6-8 weeks

📄 See Shipping Policy

⚠️ Check local zoning and permitting regulations before purchase.

• 3-Year Structural Warranty
• 3-Year Electrical & Plumbing Parts Warranty
• Learn More About Warranty

1. Select layout & quantity
2. Choose finishes (optional)
3. Confirm details within 72 hrs
4. Production & delivery in 6-8 weeks
5. Receive, unfold, connect, and move in


For more information, visit The CHOMEX Process.
