Vista Bode – 40' Expandable Container Home | 3 Bedrooms | Full Bath, Kitchen, Spacious Living Room | High Roof Modular Home (775 SF)
Couldn't load pickup availability
Bulk Discounts Available: Save when ordering 4+ units
Maximum Space. Minimal Footprint.

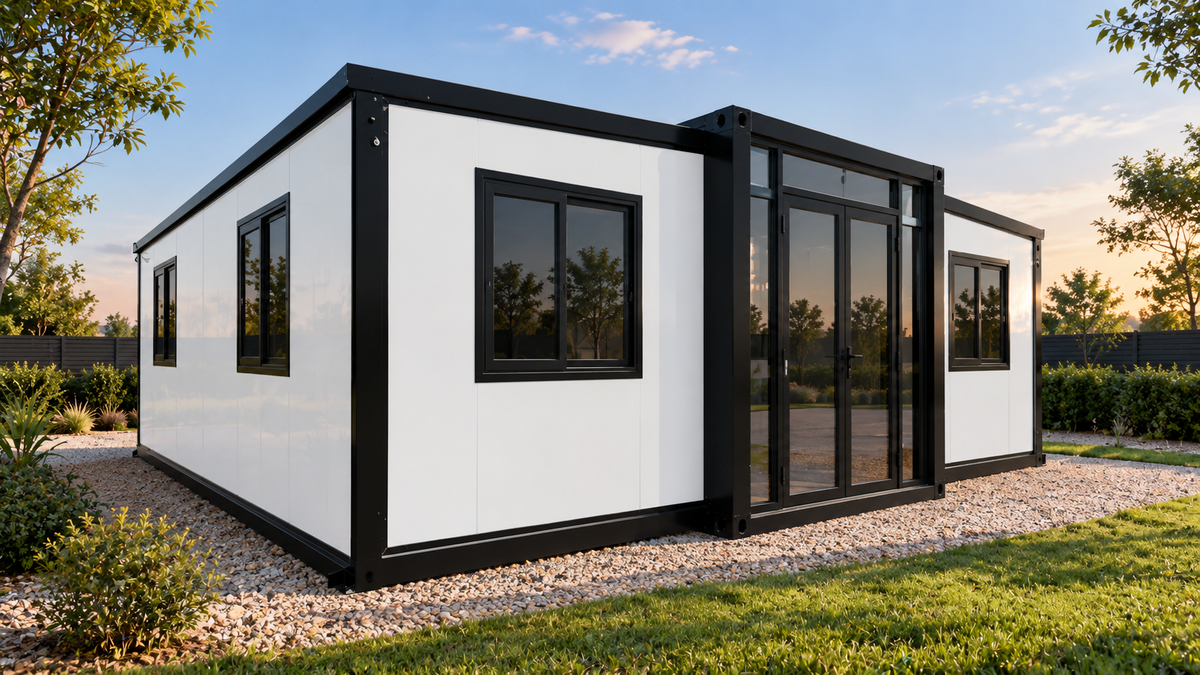

The CHOMEX 40' Expandable Container Home: High Roof Edition brings you the comfort of a traditional home with the efficiency of a modern modular build. Featuring 3 full bedrooms, a spacious living area, a full kitchen, and a modern bathroom. All under soaring 9'6" ceilings.
This home is perfect for families, group housing, or off-grid living. Built with anti-corrosion steel, A2 fire-rated panels, and premium materials, it ships flat-packed and expands onsite in just 1–2 days, making it a fast, durable, and beautiful housing solution.
🏠 Key Features

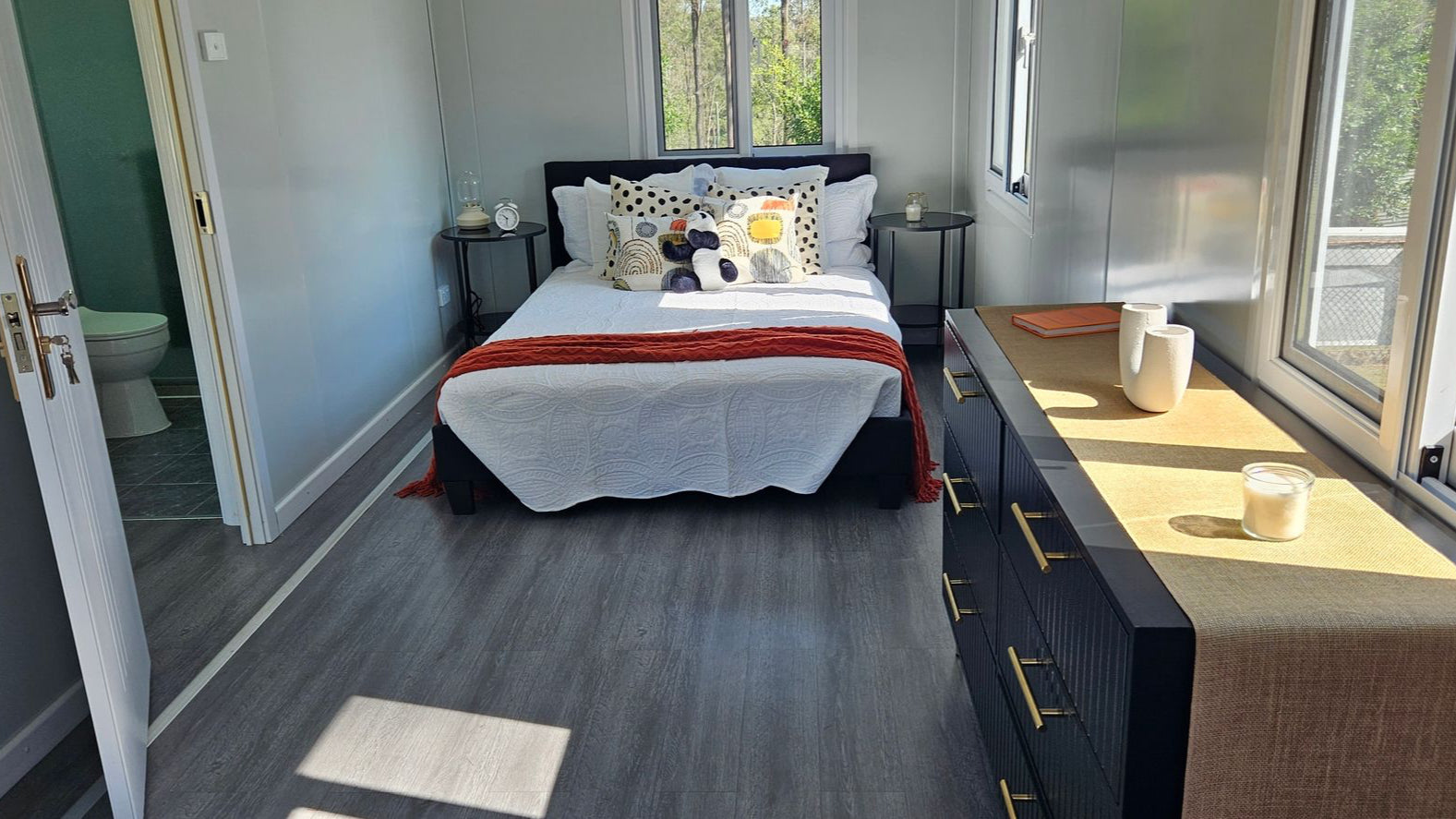

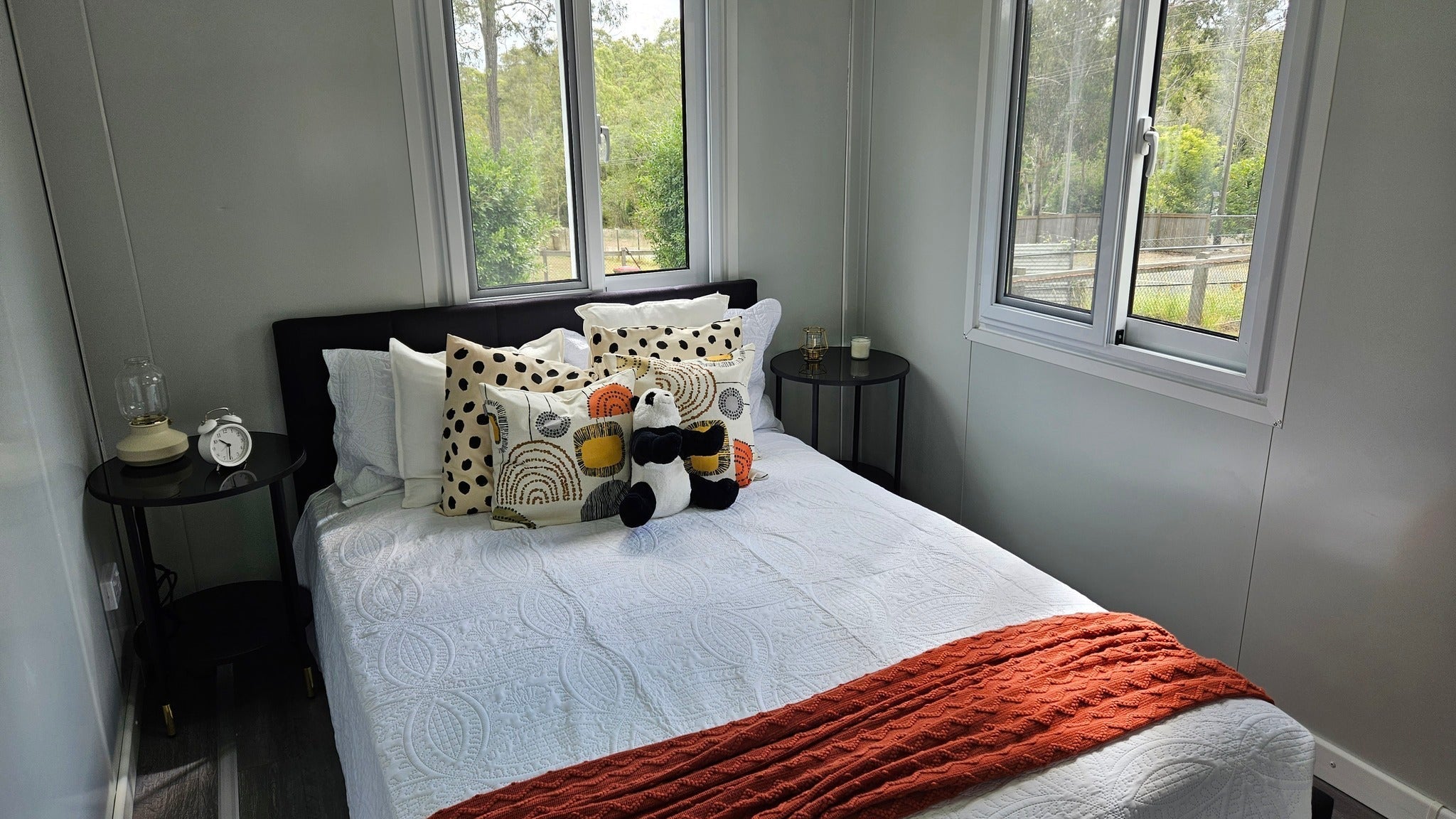

- 3 Full Bedrooms: ~108 SF each, ideal for private sleeping areas

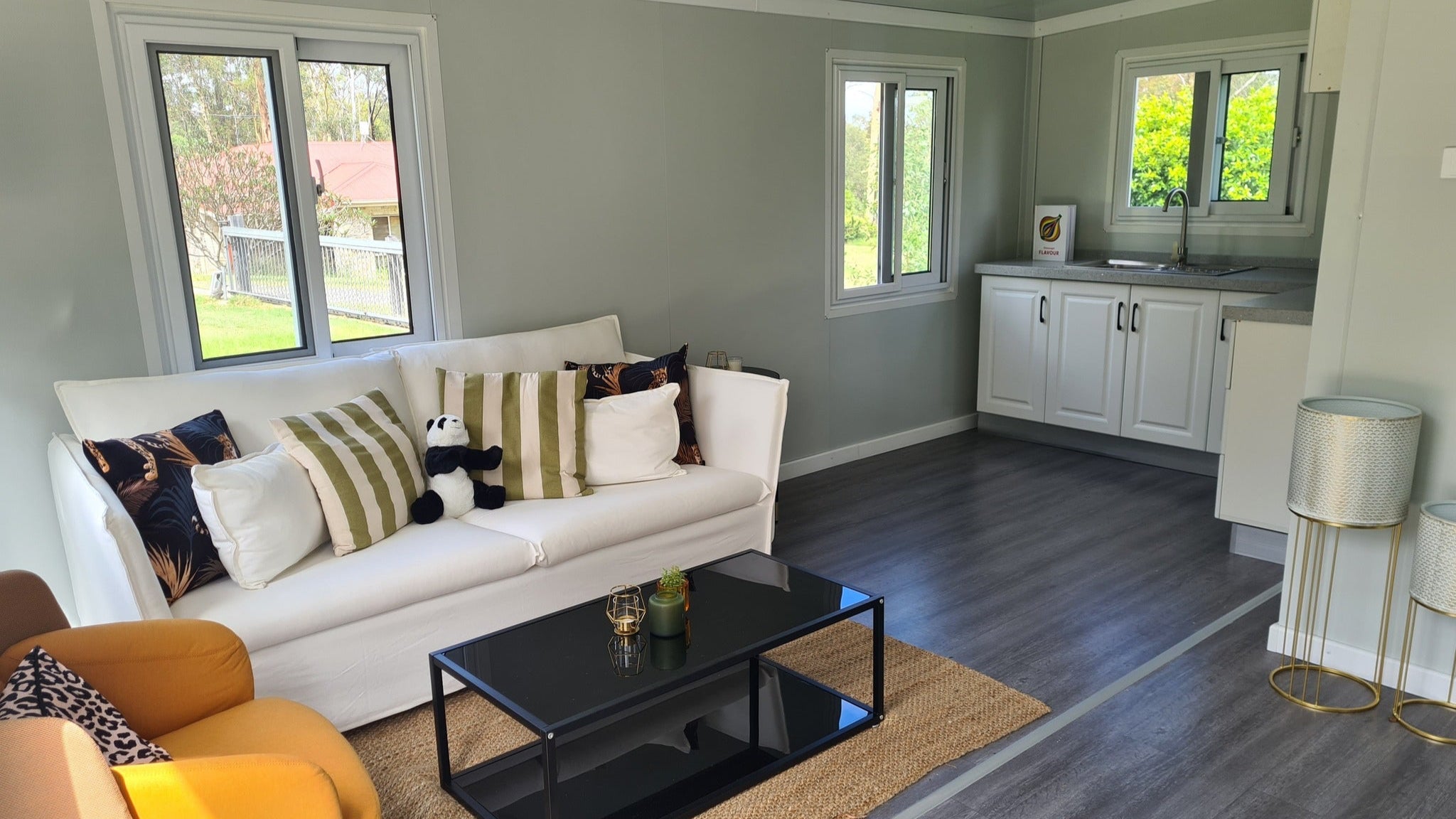

- Expansive Living Room: 354 SF of open space for family gatherings or work

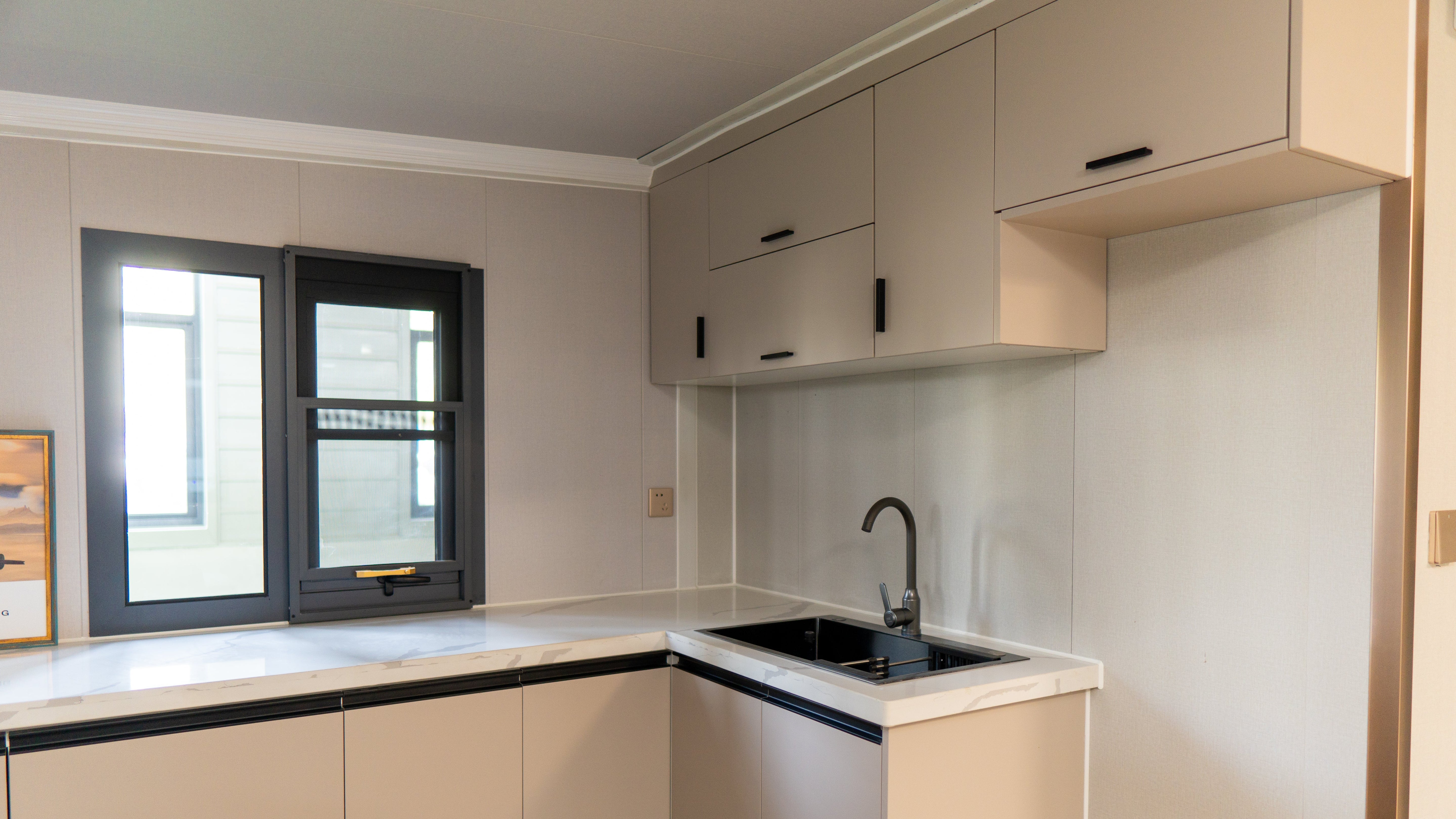

- Kitchen: 8'6" × 9'1" with space ready for full-size appliances
- Modern Bathroom: 33 SF, with vanity, shower, and toilet
- High Roof Design: Peak height of 9'6" for enhanced light and ventilation
- Rapid Deployment: Unfolds and installs in 1–2 days
- Premium Build Quality: Fire-retardant, hurricane-grade wind resistance, soundproof up to 60db
- Utility Ready: Pre-framed for plumbing, electrical, and HVAC
- 50+ Year Life Expectancy: With anti-corrosion frame and weatherproofing
📐 Dimensions

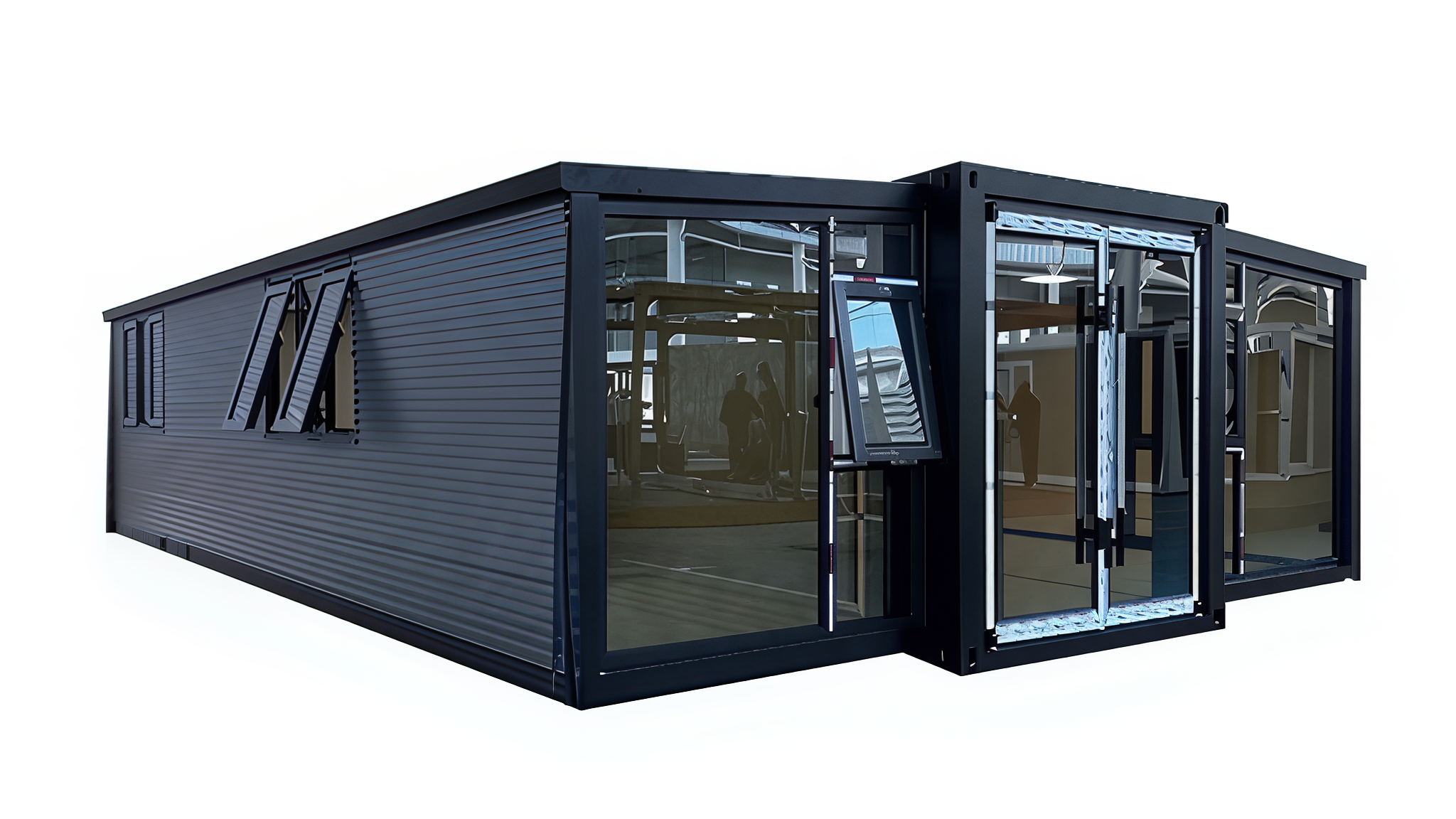

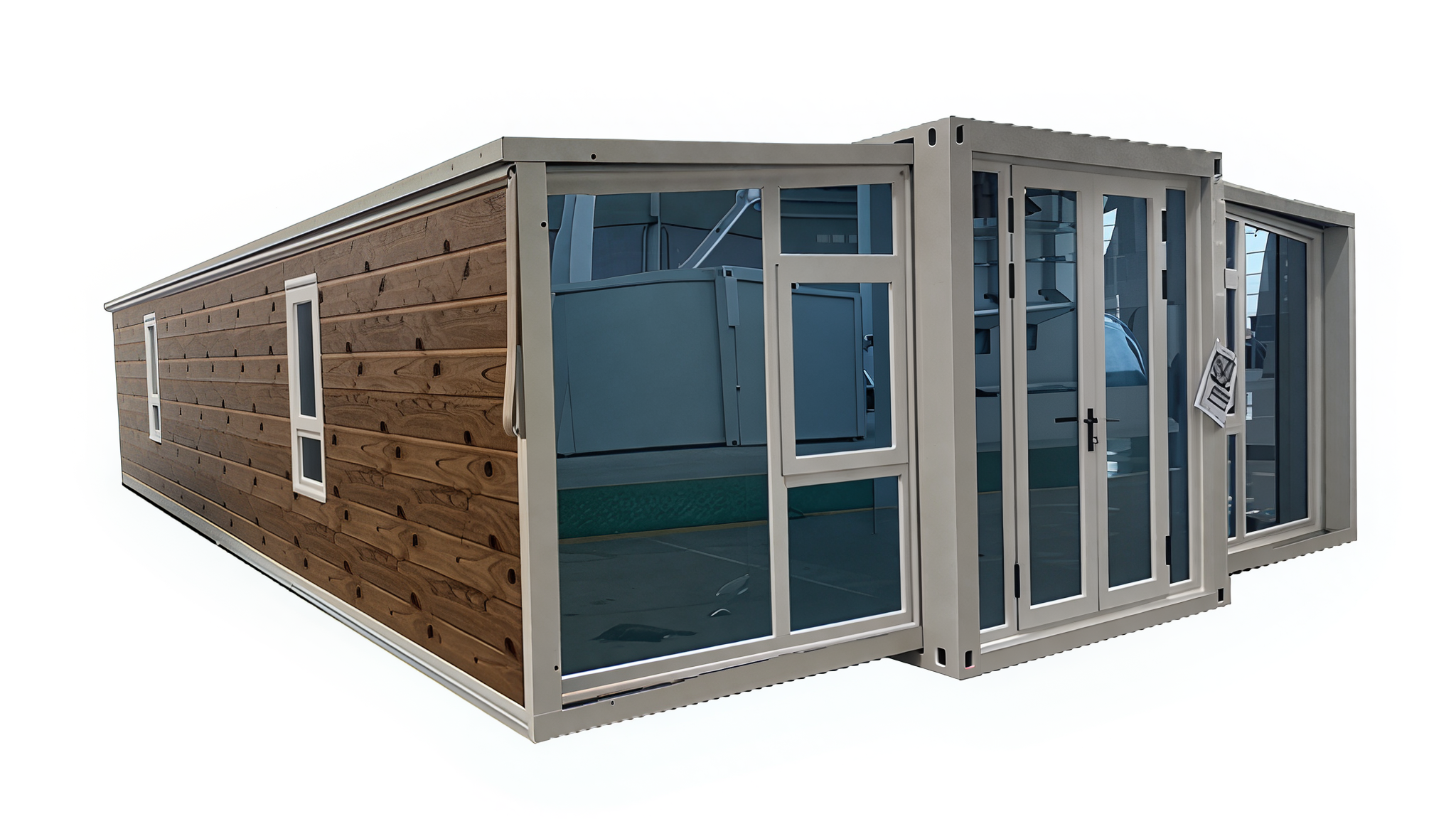

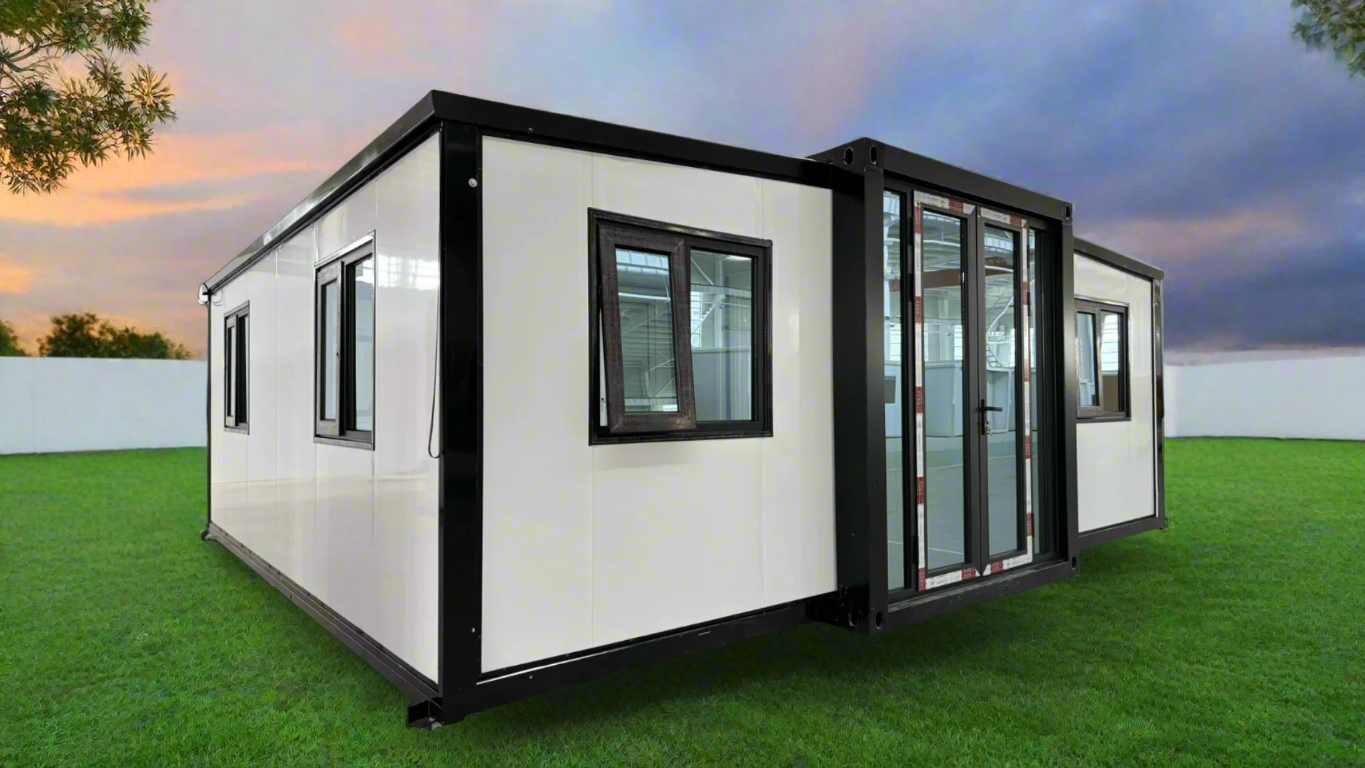

- Expanded Size: 38' 9" L × 20' 5" W × 8' 2" H
- Internal Size: 37' 10" L × 19' 11" W × 7' 3" H
- Folded Size: 38' 9" L × 7' 3" W × 8' 2" H
- Total Living Space: ~805 SF
- Ceiling Heights:
- Lowest: 8'
- Peak: 9'6"
- Room Sizes:
- Bedrooms: ~108 SF each
- Living Room: 12'11" × 27'4.5" (~354 SF)
- Kitchen: ~77 SF
- Bathroom: ~33 SF
🔧 Construction Specifications
- Wallboard: Type 950: 65 mm thick, double-sided 0.3 mm EPS color steel composite
- Frame: Electrostatic-sprayed protective coating + anti-corrosion finish
- Folding Hinges: 130 mm galvanized embedded hinges
- Flooring: 18 mm bamboo glue board + 4 mm SPC stone plastic floor
- Main Roof Panel: Type 950: 50 mm EPS composite + 0.45 mm corrugated veneer
- Interior Ceiling Panels: Type 950: 50 mm EPS composite
- Wing Roof Panels: Type 950: 65 mm EPS composite + 0.45 mm corrugated veneer
- Windows & Doors: Aluminum alloy double-glass sliding windows, steel fire door (optional broken-bridge aluminum)
- Electrical Systems: Standard pre-wiring; customizable on request

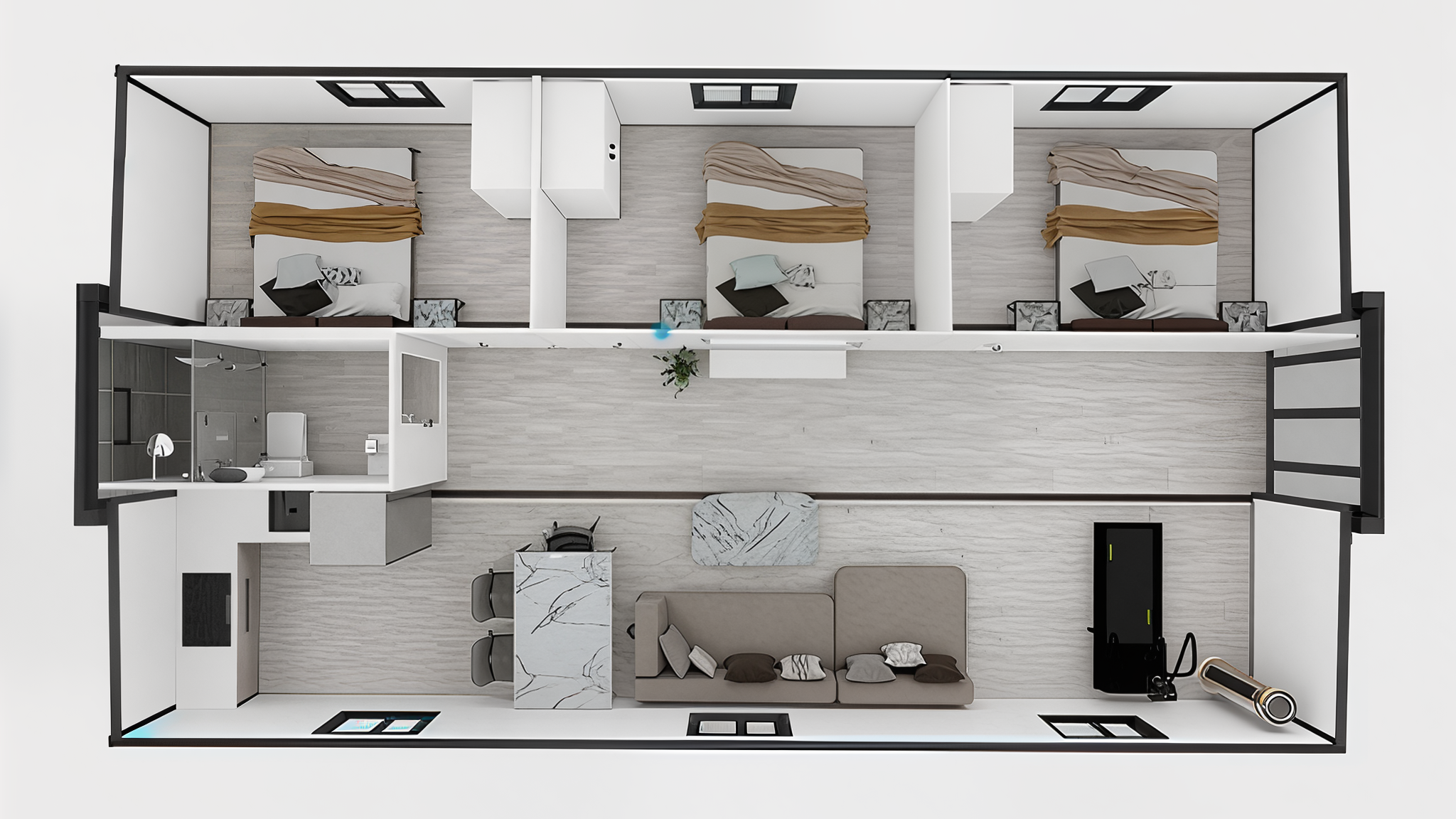

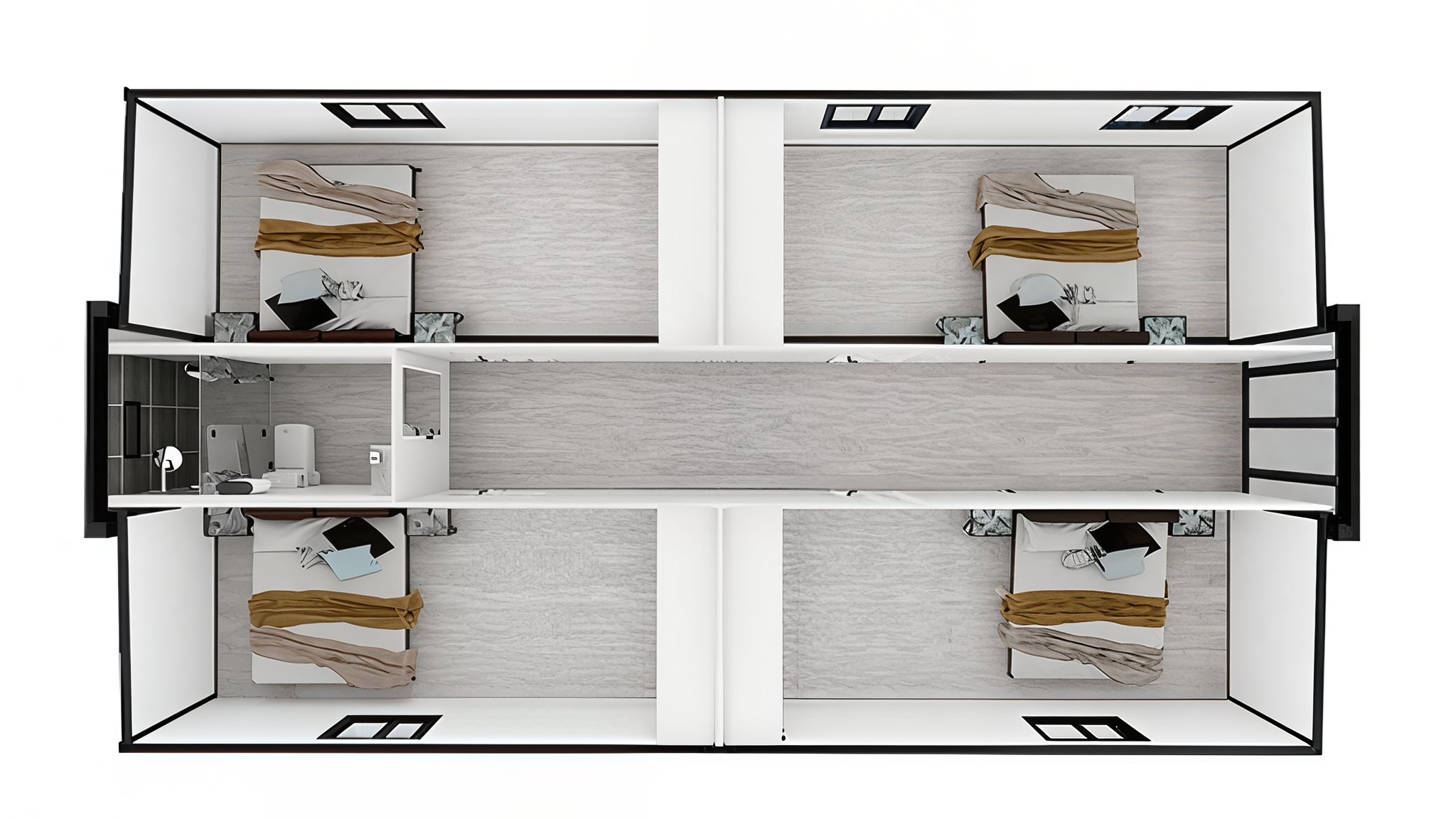

🛋 Interior Layout Options
- Option A: Two bedrooms, a study, a living room, kitchen, and bathroom

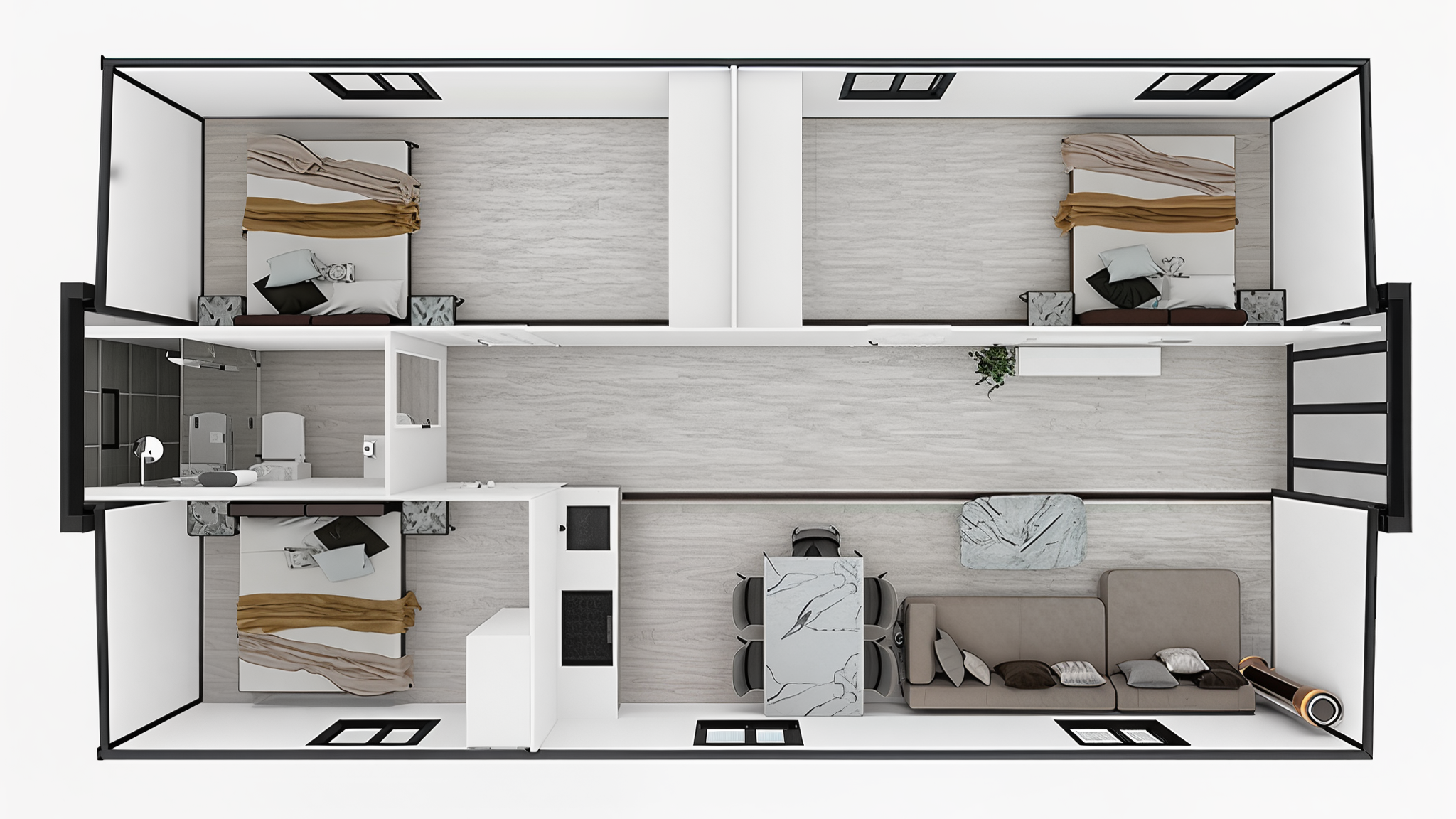

- Option B: Three bedrooms, a living room, kitchen, and bathroom
🚪 Door & Window Details
- Main Door: Steel fire door (optional broken-bridge aluminum)
- Bathroom Door: Slim Changhong glass
- Windows: Aluminum alloy or broken-bridge aluminum, double-tempered glass
🚿 Bathroom Details
Dry/wet separation with Changhong glass swing partition
Fixtures: Copper-core shower, branded wash basin, intelligent mirror cabinet, branded toilet
UV-coated wall panels, SPC stone flooring
Base insulation: Polyurethane with 1.2 mm steel plate protection

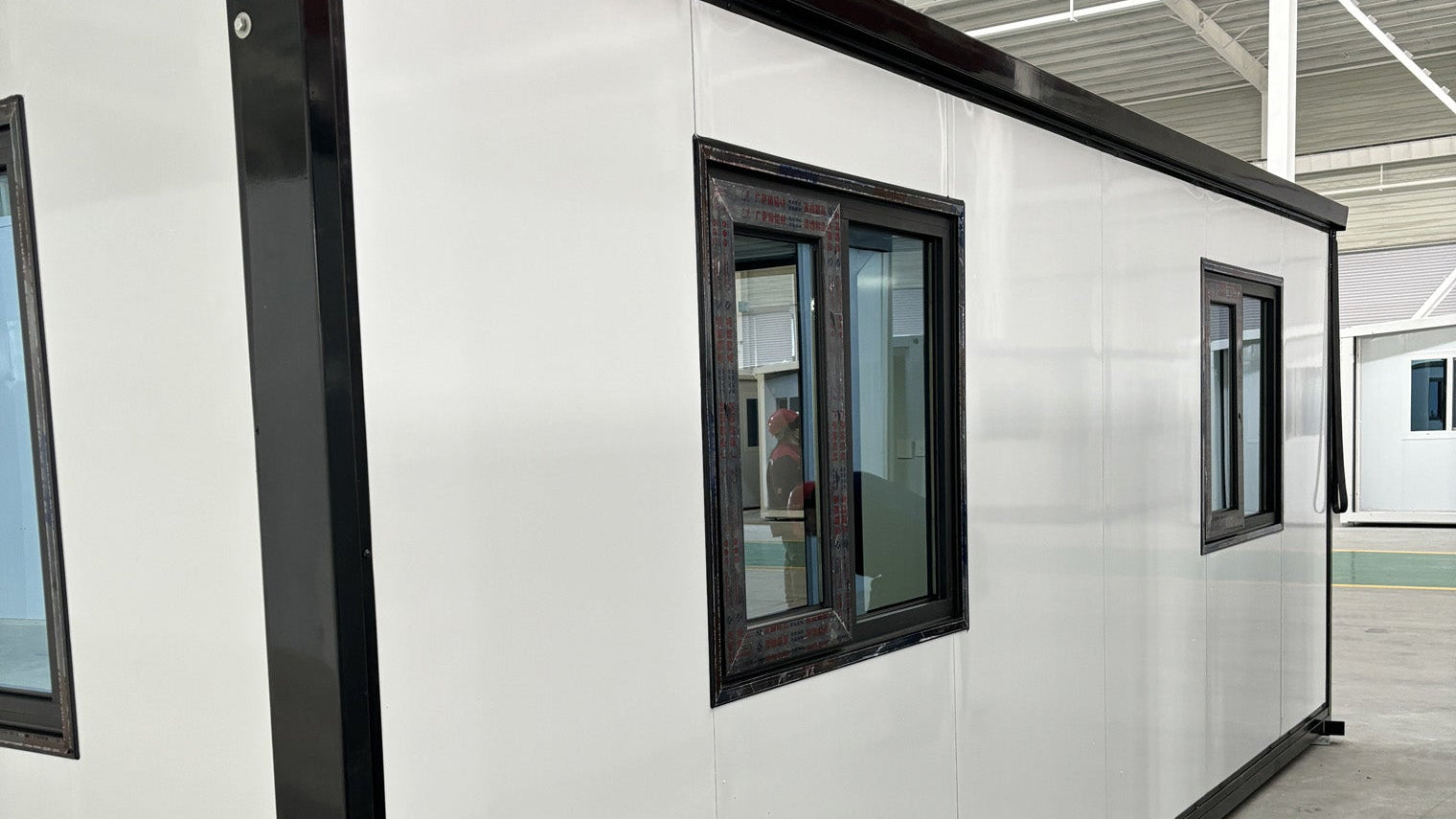

🧱 Exterior Wall Panels
Lightweight, high-strength, and weather-resistant
A2 fire protection standard
Customizable colors
Recyclable for reduced waste
🎨 Interior Wall Panel Options
- Beige
- Fine Fabric
- Sub-Gray Country
- Fine Pearl
- Boutique Hot Stamping
- Wenge Wood A009 (Double Inclined Groove)
- A003 Dashan Wood
🪵 Floor Color Selections
- 4.0 mm SPC Stone Plastic Floor: HY8911, HY8918, HY8920, HY8915, HY8921
- 8.0 mm SPC Stone Plastic Floor: F8581, F8582, F8583, F8585, F8586
🔄 Use Cases
- Permanent family residence
- Airbnb or vacation rental
- Guest or staff lodging
- Workforce or NGO housing
- Off-grid living solutions
🛠 What’s Included
- 40' expandable container unit
- Installed windows and doors
- Fully framed interiors (3 bedrooms, living room, kitchen, bathroom)
- Kitchen and bathroom utility layout

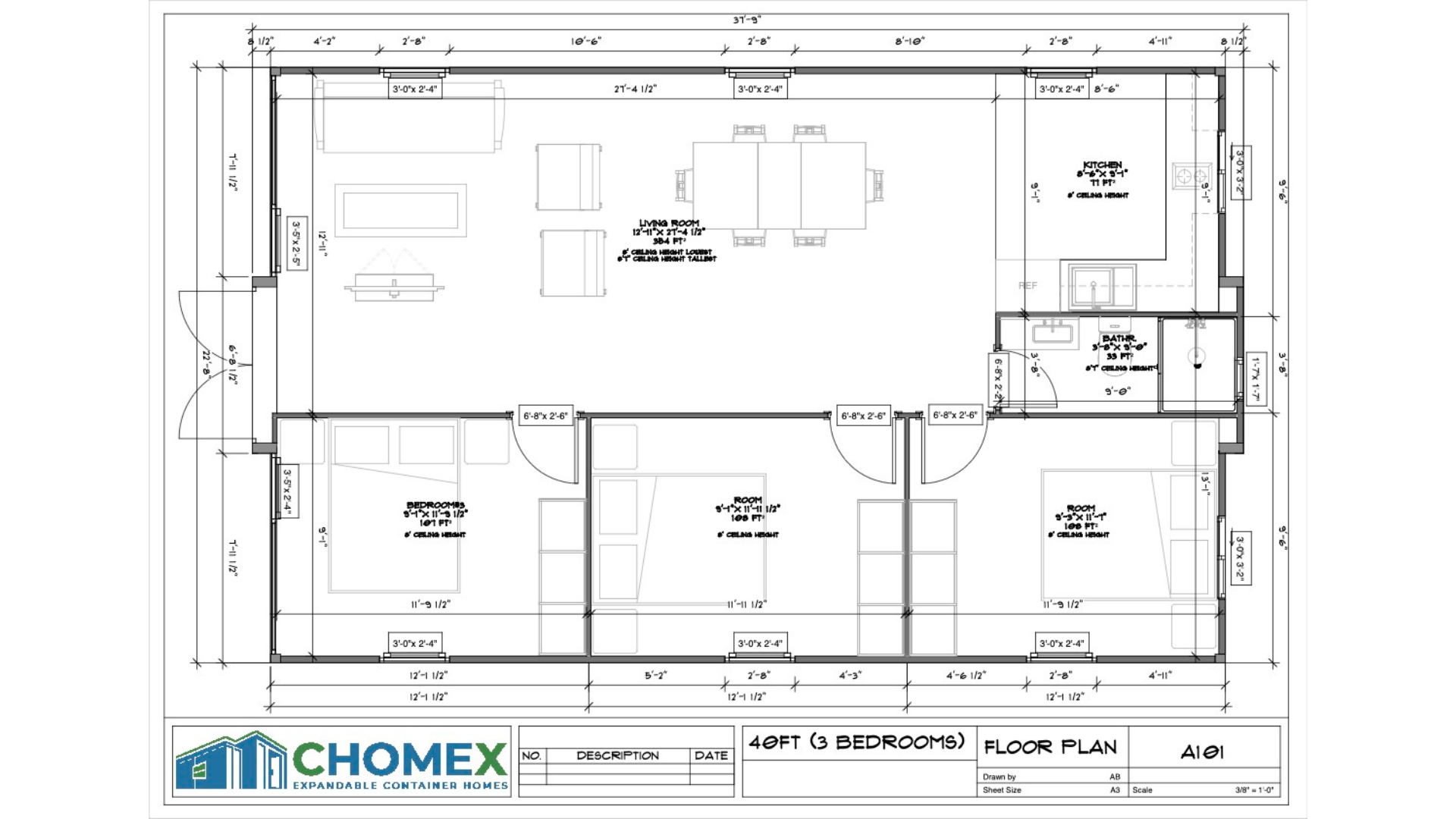

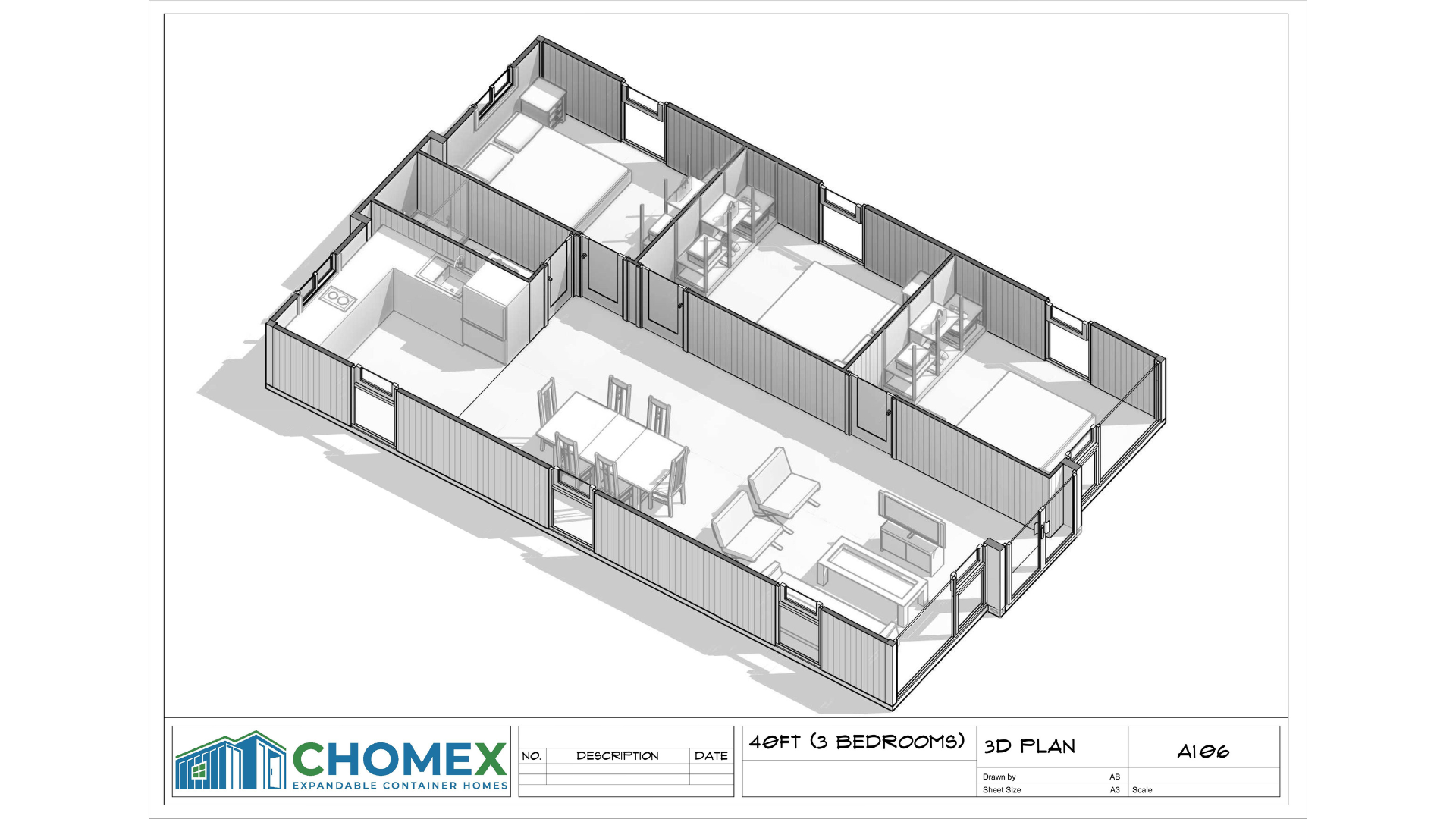

- Complete technical documentation (floor plan, roof plan, elevations, 3D views)
🛠 Customization Available
Looking for a studio version or different finishings?
📩 Contact Us for custom configurations or volume orders.
Free nationwide delivery across the continental U.S. via flatbed or tilt-bed trucks.Crane service available (additional cost).Lead Time: 6-8 weeks
⚠️ Check local zoning and permitting regulations before purchase.
- 3-Year Structural Warranty
- 3-Year Electrical & Plumbing Parts Warranty
- Learn More About Warranty
- Select layout & quantity
- Choose finishes (optional)
- Confirm details within 72 hrs
- Production & delivery in 6-8 weeks
- Receive, unfold, connect, and move in
For more information, visit The CHOMEX Process.
