Duo Mod – 20' Expandable Container Home | 1 Bedroom | Full Bath, Kitchen, Dinette & Living Room | 385 SF Tiny Home

Bulk Discounts Available: Save when ordering 4+ units

Big Living, Compact Footprint

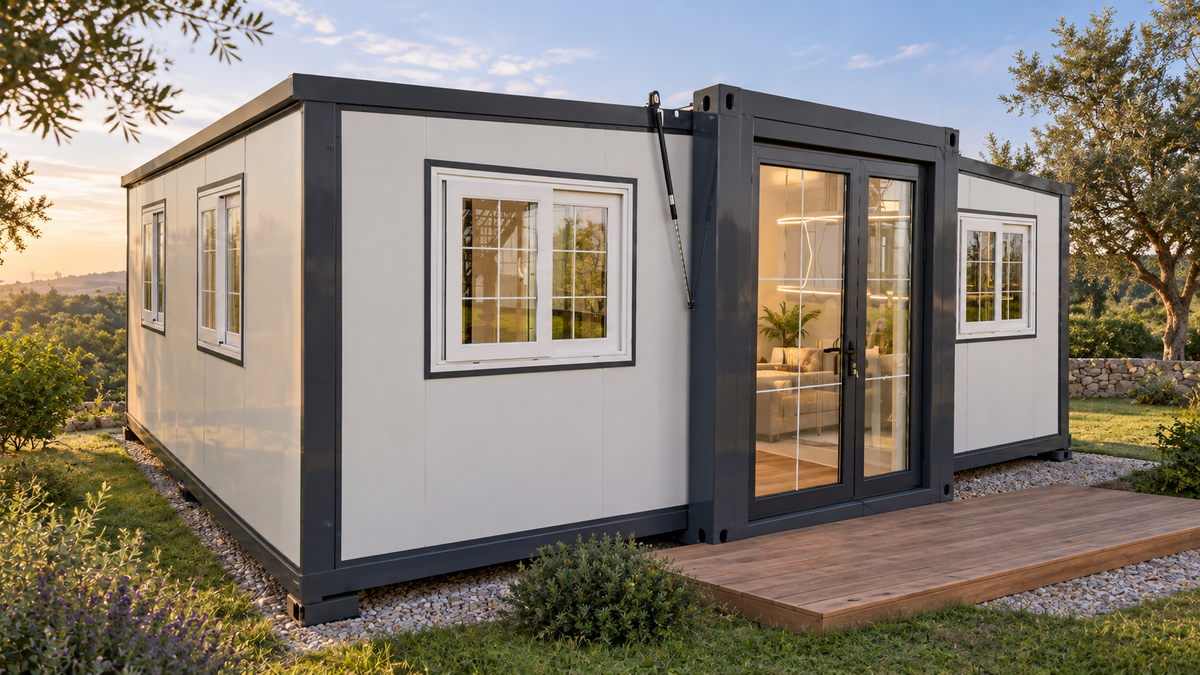

The CHOMEX 20' Expandable Container Home delivers a spacious 1-bedroom layout with a full kitchen, dinette, living room, and private bathroom — all in a 385 SF footprint. Delivered flat-packed and set up in under an hour, it’s ideal for backyard ADUs, vacation rentals, off-grid cabins, or Airbnb investments.
Built to perform in any climate with hurricane-rated, fire-retardant materials and premium insulation, this home offers maximum comfort, durability, and flexibility.

🏠 Key Features

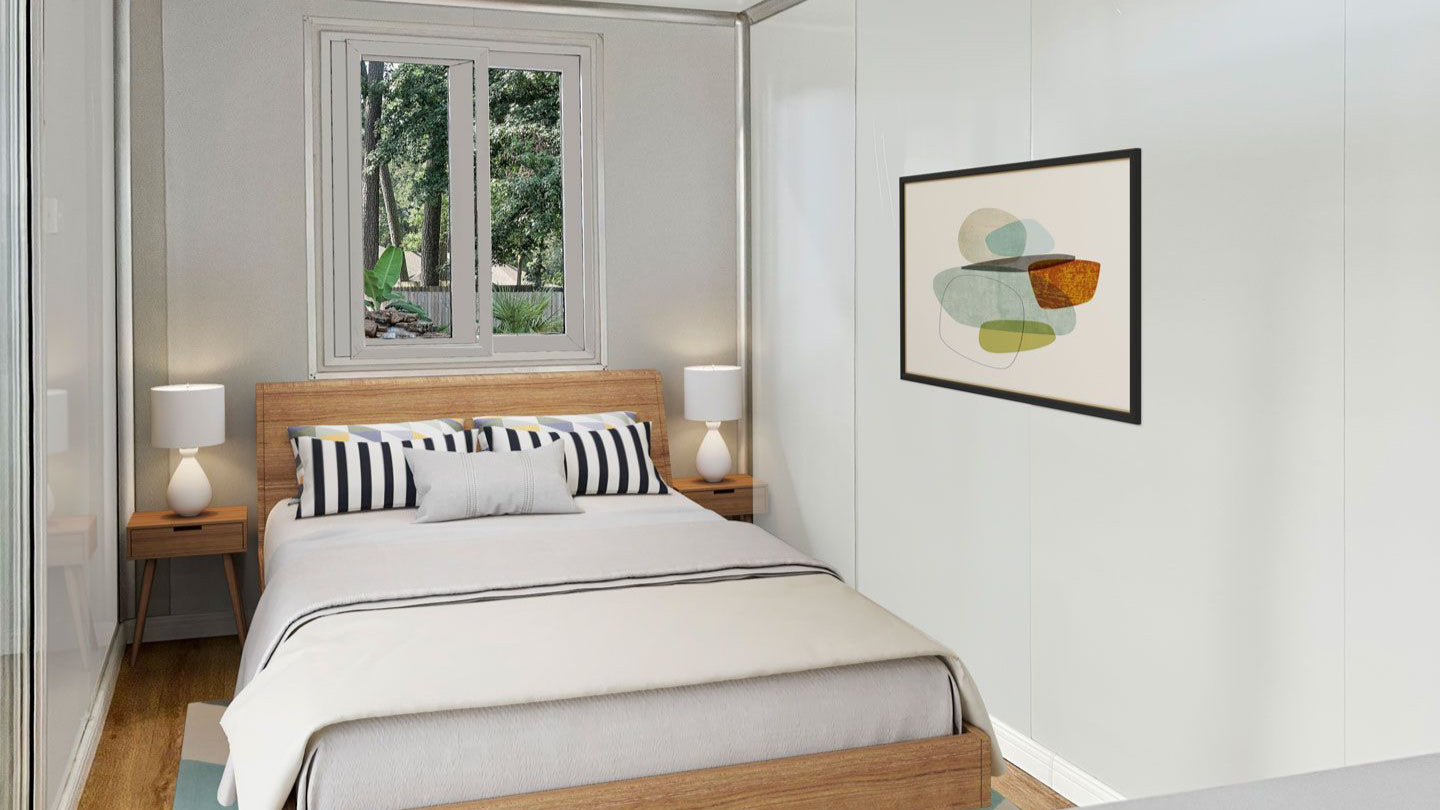

• 1 Private Bedroom: Ideal for singles, couples, or guest accommodations

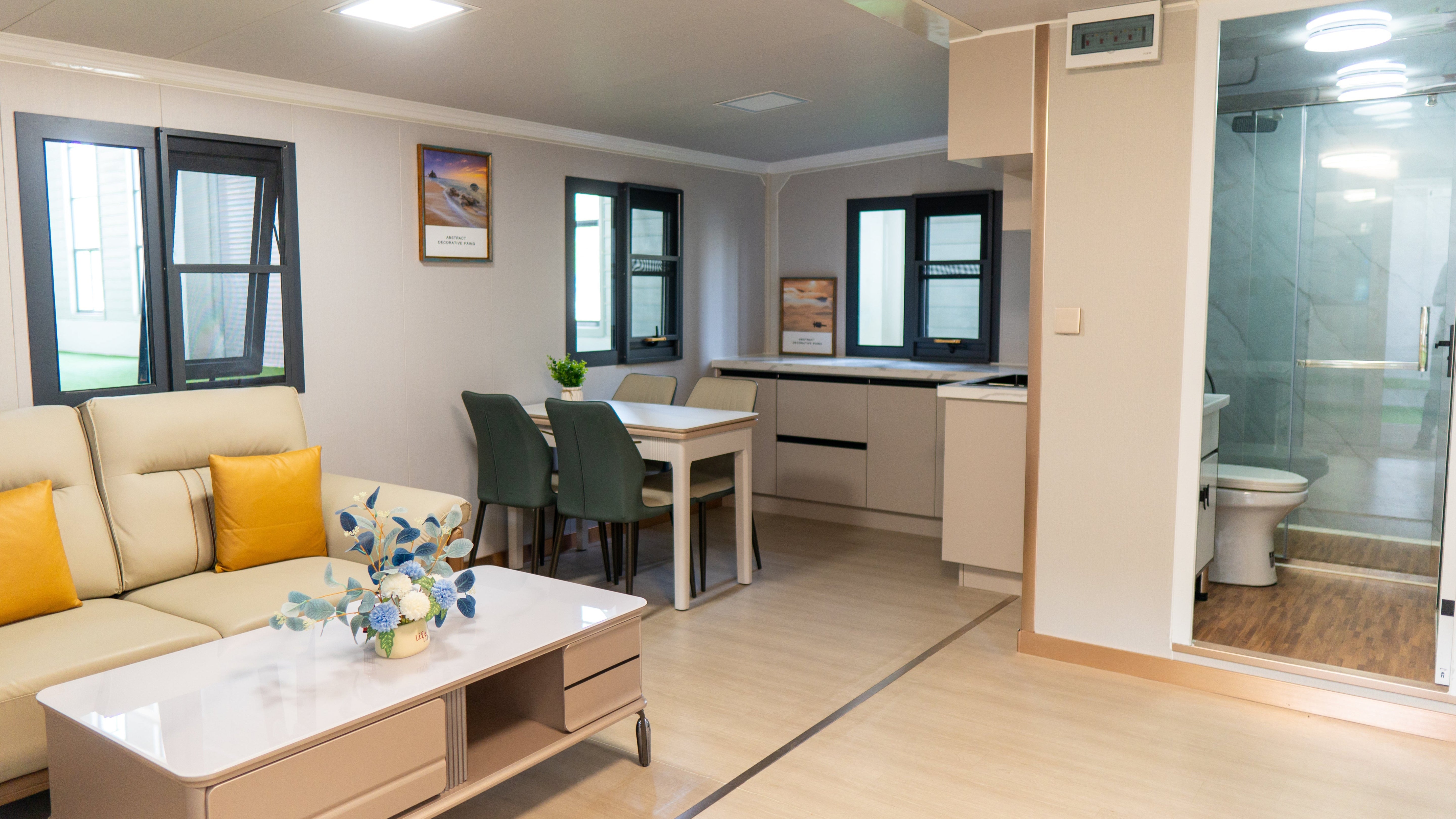

• Central Living & Dining Area: Open layout for comfort and versatility
• Full Kitchen: Ready for appliances and storage
• Private Bathroom: Shower, vanity, toilet, and plumbing included
• Quick Setup: Installs on-site in under 1 hour
• Weather-Resistant: Grade 3 fire-retardant, hurricane-rated materials
• Soundproof & Cozy: Premium insulation, double-pane windows, up to 60db noise reduction
• Durable Frame: Anti-corrosion treated steel, 50+ year life expectancy
• Snow Load Capacity: 1.0 kN/m² for year-round climates
• Utility-Ready: Pre-installed electrical, plumbing, and lighting

📐 Dimensions

• Expanded Size: 19' 4" L × 20' 8" W × 8' 2" H
• Internal Size: 17' 11" L × 20' 2" W × 7' 4" H
• Folded Size: 19' 4" L × 7' 3" W × 8' 2" H
• Surface Area: ~385 SF
• Ceiling Height: 8'

🔧 Construction Specifications

• Wallboard: Type 950: 65 mm double-sided 0.3 mm EPS color steel composite panel
• Frame: Electrostatic sprayed protective coating + anti-corrosion treatment
• Folding Hinge: 130 mm galvanized embedded hinge
• Floor: 18 mm bamboo glue board + 4 mm SPC stone plastic flooring
• Main Exterior Roof: Type 950: 50 mm EPS steel composite + 0.45 mm corrugated veneer
• Ceiling Panels: Type 950: 50 mm EPS steel composite
• Wing Roof Panels: Type 950: 65 mm EPS steel composite + 0.45 mm corrugated veneer
• Windows & Doors: Aluminum alloy double-glass sliding windows, steel fire door (optional broken-bridge aluminum)
• Electrical: Standard wiring; customizable upon request

🛋 Interior Layout Options

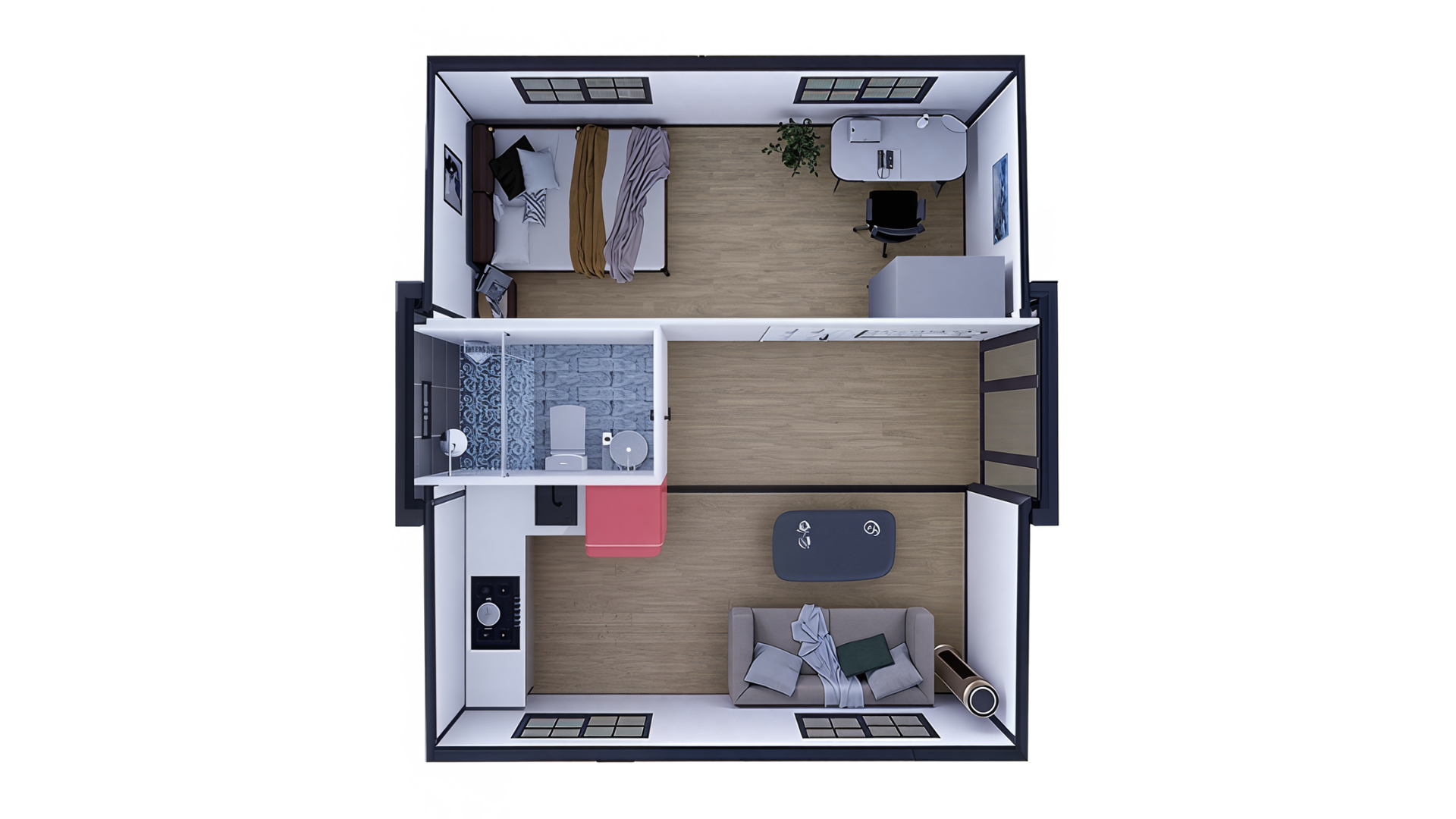

• Option A: 1 bedroom, 1 study, 1 living room, 1 kitchen, 1 bathroom

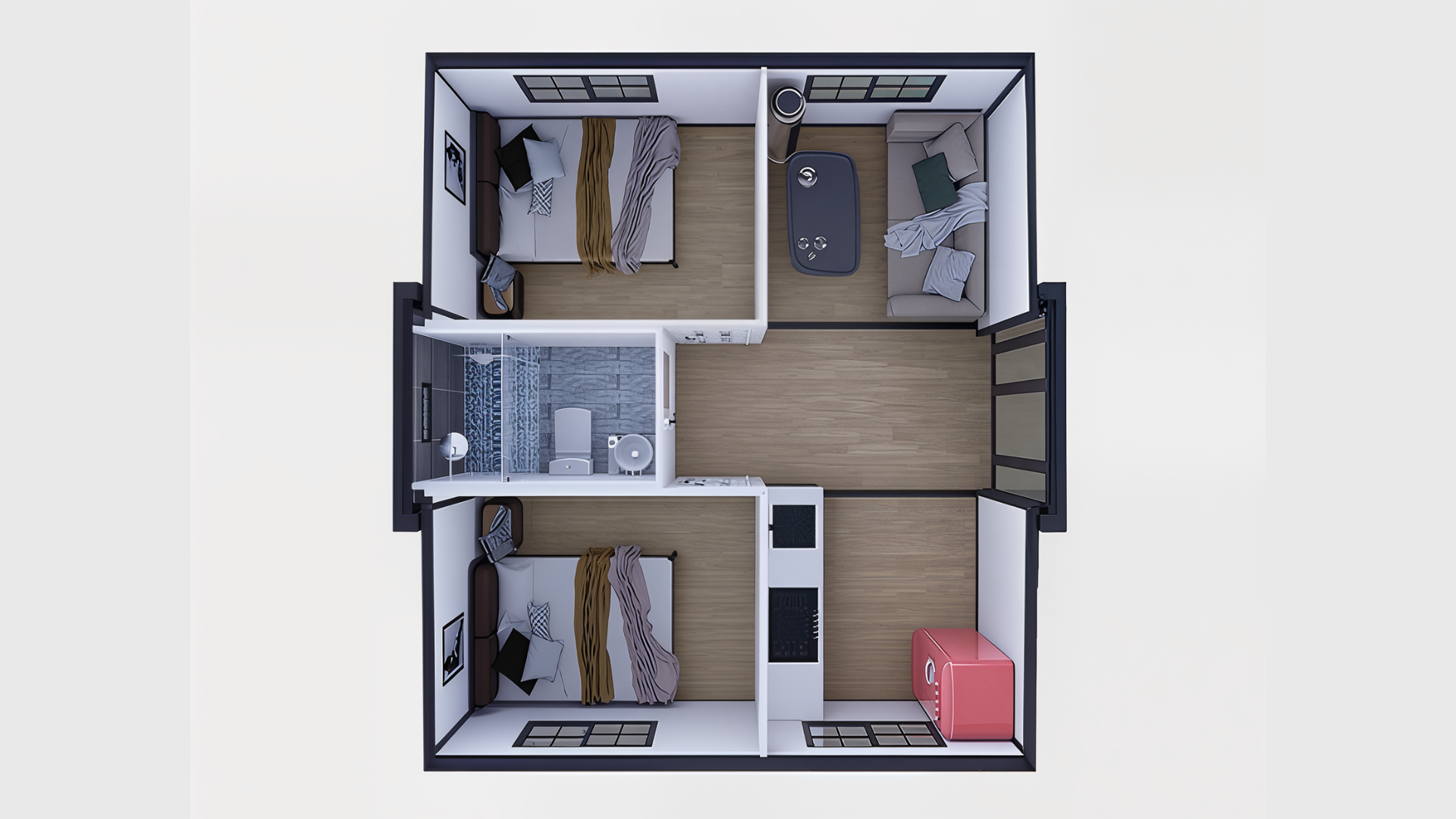

• Option B: 2 bedrooms, 1 living room, 1 kitchen, 1 bathroom
• Option C: 1 bathroom, 1 living room, 1 dining room, 1 kitchen, 1 bathroom
• Option D: 1 bedroom, 1 living room, 1 kitchen, 1 bathroom

🚪 Door & Window Details

Doors:

• Security: Zinc alloy steel plate + aluminum frame + smart fingerprint lock
• Entrance: Broken-bridge aluminum + double-layer tempered glass
• Bedroom: Titanium-magnesium alloy frame + sandwich wood board
• Bathroom: Titanium-magnesium alloy + tempered glass

Windows:
Broken-bridge aluminum or aluminum alloy + double-layer tempered glass
Optional plastic steel frame

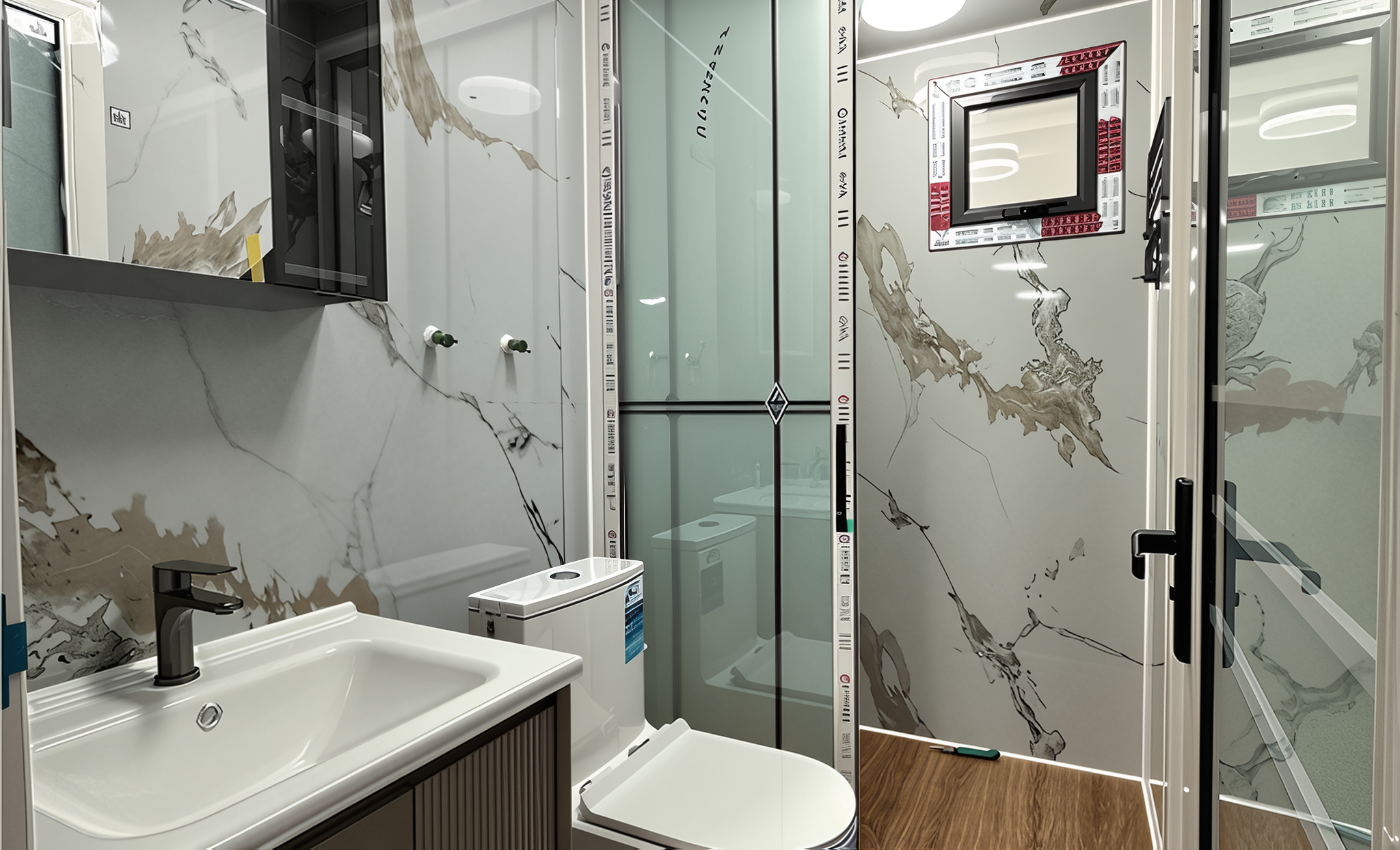

🚿 Bathroom Details

Dry/Wet Separation with Changhong glass doors
Shower (copper core), wash basin, intelligent mirror cabinet, toilet
UV wall panels, SPC flooring, polyurethane insulated base, steel bottom protection
Fully plumbed for water and sewer connections

🧱 Exterior Wall Panels

Lightweight yet high-strength
Cold & heat resistant, A2 fire protection
Long-lasting finish with color customization available
100% recyclable

🎨 Interior Wall Panel Options

• Beige
• Fine Fabric
• Sub-Gray Country
• Fine Pearl
• Boutique Hot Stamping

🪵 Floor Color Selections

• 4.0 mm SPC Stone Plastic Floor: HY8911, HY8918, HY8920, HY8915, HY8921
• 8.0 mm SPC Stone Plastic Floor: F8581, F8582, F8583, F8585, F8586

🔄 Use Cases

• Tiny home or guest suite
• Backyard ADU
• Vacation rental or Airbnb
• Off-grid cabin
• Workforce or staff housing

🛠 What’s Included

• Expandable modular unit
• Pre-installed windows & doors
• Pre-framed 1-bedroom interior with full kitchen, dinette, and bath
• Installed wiring & plumbing infrastructure
• Technical docs: Floor Plan, 3D View, Roof/Elevation Plans

🛠 Customization Available

Looking for a studio version or different finishings?
📩 Contact Us for custom configurations or volume orders.

Free nationwide delivery across the continental U.S. via flatbed or tilt-bed trucks.Crane service available (additional cost).Lead Time: 6-8 weeks

📄 See Shipping Policy

⚠️ Check local zoning and permitting regulations before purchase.

• 3-Year Structural Warranty
• 3-Year Electrical & Plumbing Parts Warranty
• Learn More About Warranty

1. Select layout & quantity
2. Choose finishes (optional)
3. Confirm details within 72 hrs
4. Production & delivery in 6-8 weeks
5. Receive, unfold, connect, and move in


For more information, visit The CHOMEX Process.
